Fuel Injection: Injector-Fuel: Removal

  1. Remove fuel rail. Refer to RAIL-FUEL .
  2. Disconnect clip(s) that retain fuel injector(s) to fuel rail (2).

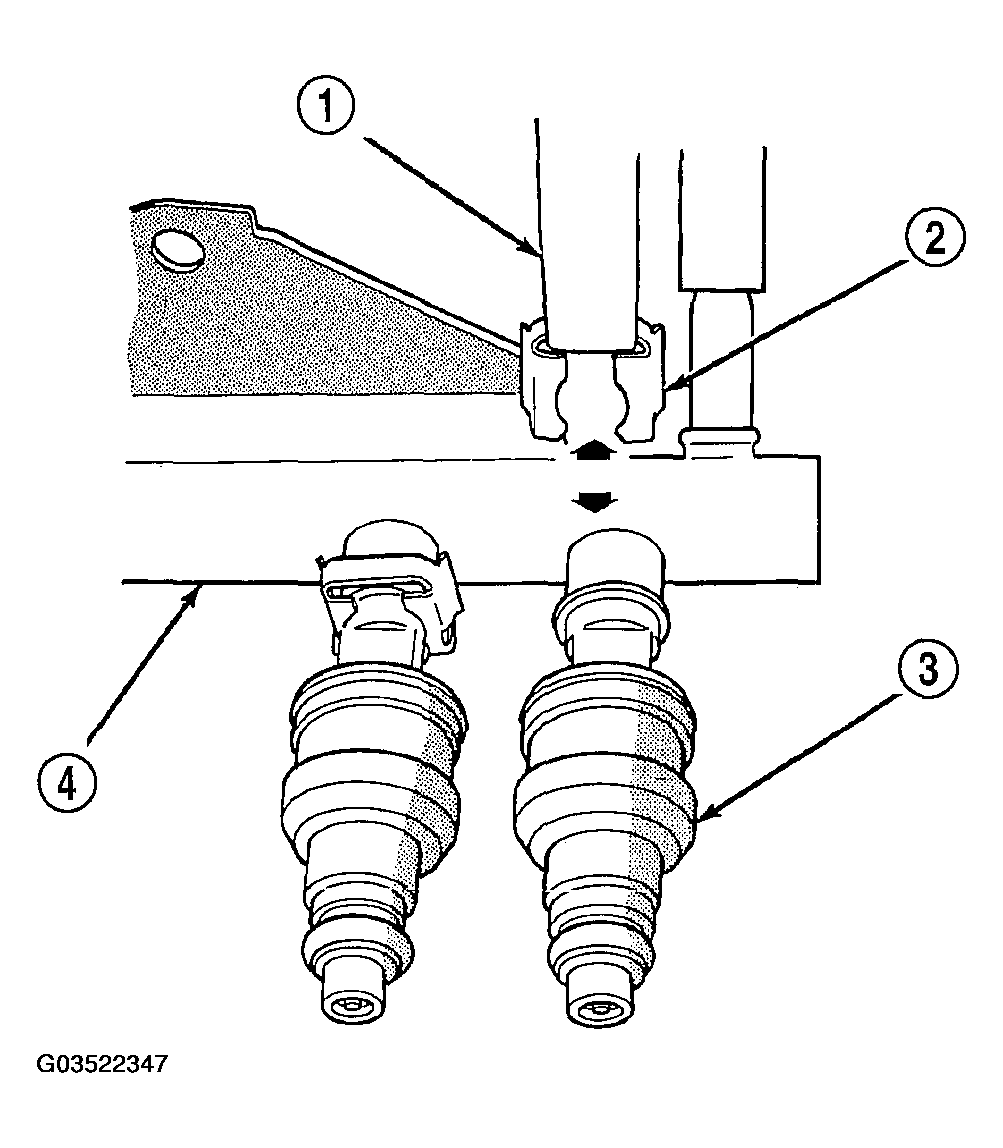

    Fig 1: Disconnecting Clip That Retains Fuel Injector To Fuel Rail
    G03522347Courtesy of DAIMLERCHRYSLER CORP.
