Transmission Solenoid/Pressure Switch Assembly Connector End View

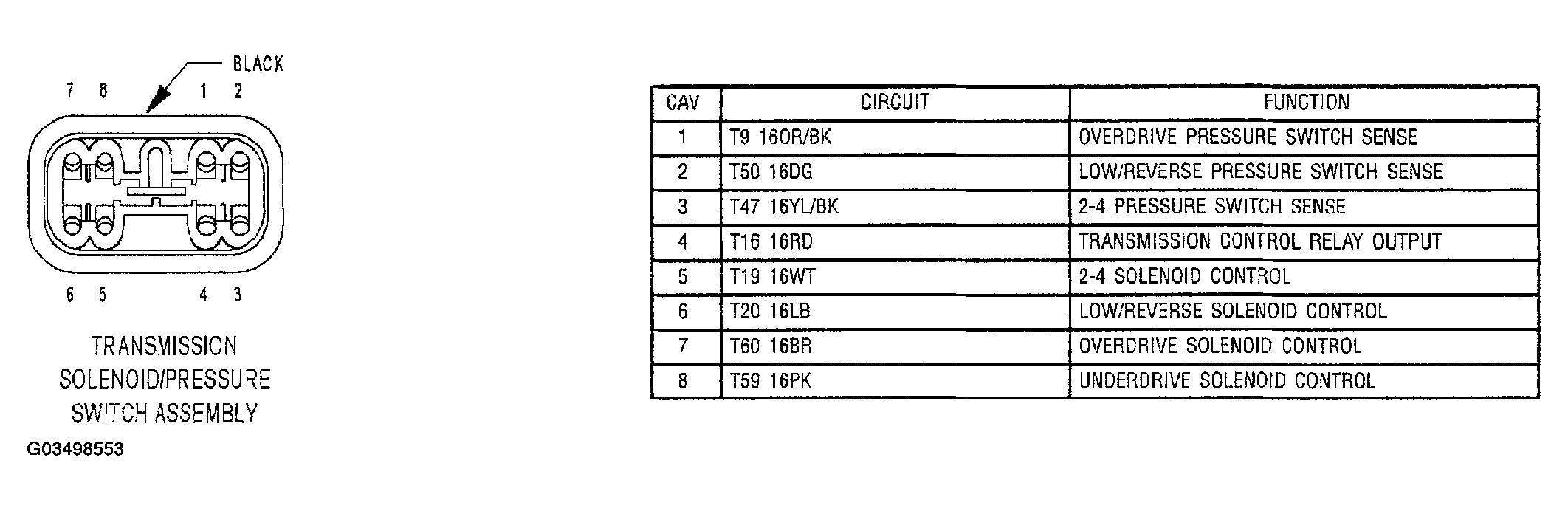

Fig 1: Transmission Solenoid / Pressure Switch Assembly Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
