Installation - 1.6L

Failure to route the cables properly could cause the radio to reproduce ignition noise, cross ignition of the spark plugs or short circuit the cables to ground.

1. To avoid cross threading, start the spark plug into the cylinder head by hand.

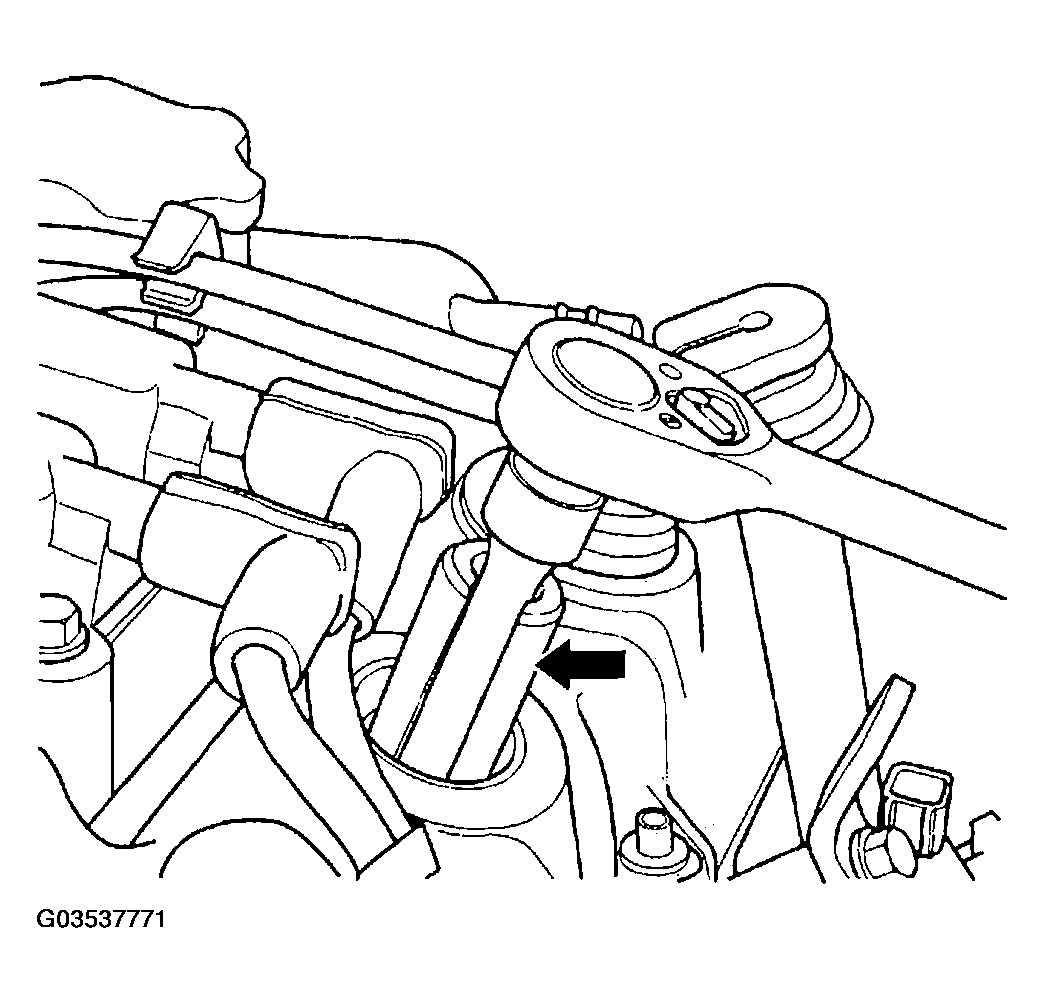

2. Use special tool 8448 (Figure ) to install and tighten the spark plug. Tighten spark plugs to 28 N.m (20 ft. lbs.) torque.
3. Install spark plug insulators over spark plugs. Ensure the top of the spark plug insulator covers the upper end of the spark plug tube.
4. Reconnect to coil.
