Fuel Pump Module: Description

The fuel pump module is installed in the fuel tank (Fig 1).

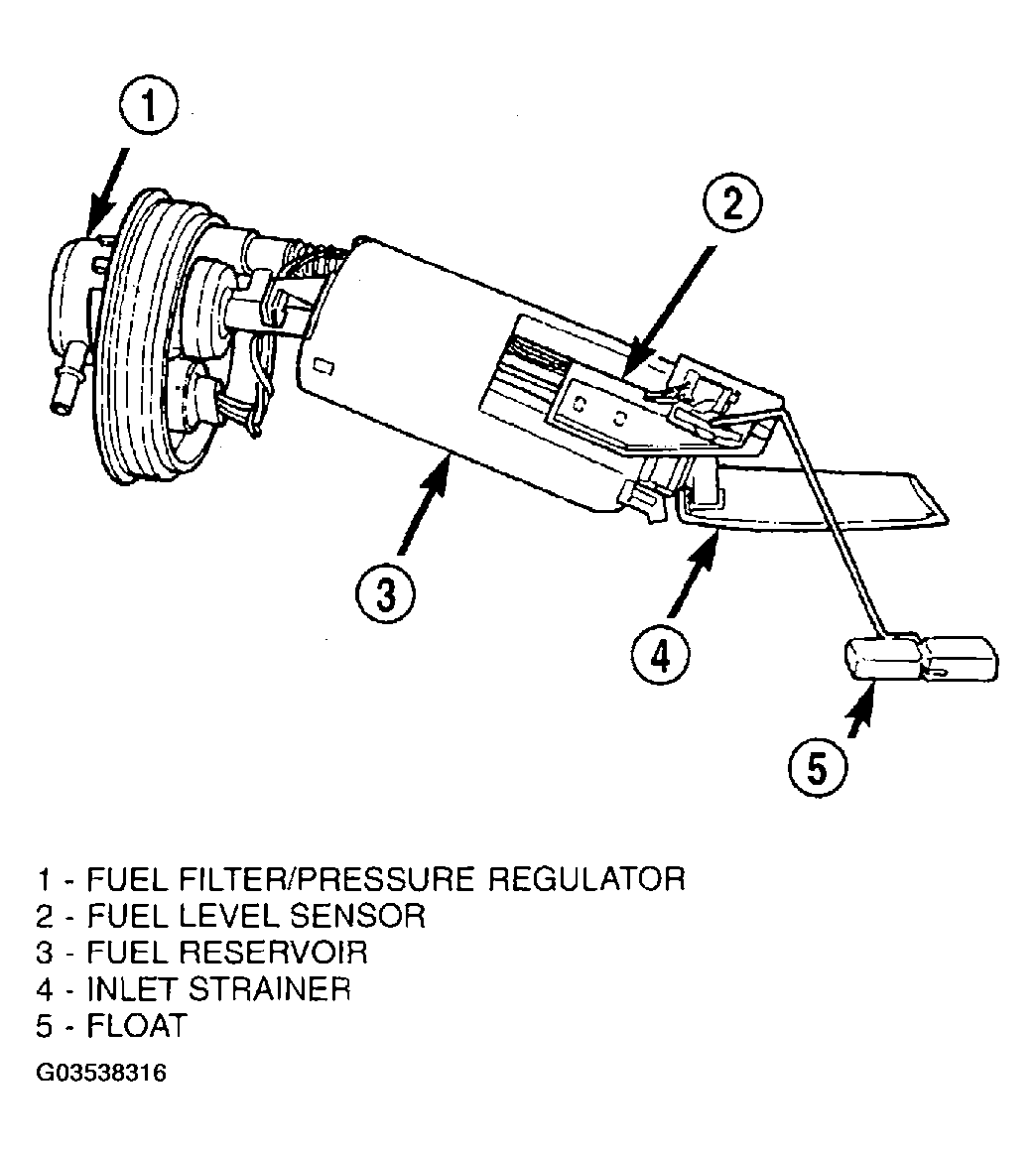

Fig 1: Identifying Fuel Pump Module Components
G03538316Courtesy of DAIMLERCHRYSLER CORP.
