Replacing With New Sensor

The camshaft position sensor is located on the timing chain case above the water pump and under the throttle body (Figure ).

If a new replacement camshaft position sensor is to be installed, use this procedure.

1. Disconnect the sensor wiring harness connector from sensor.

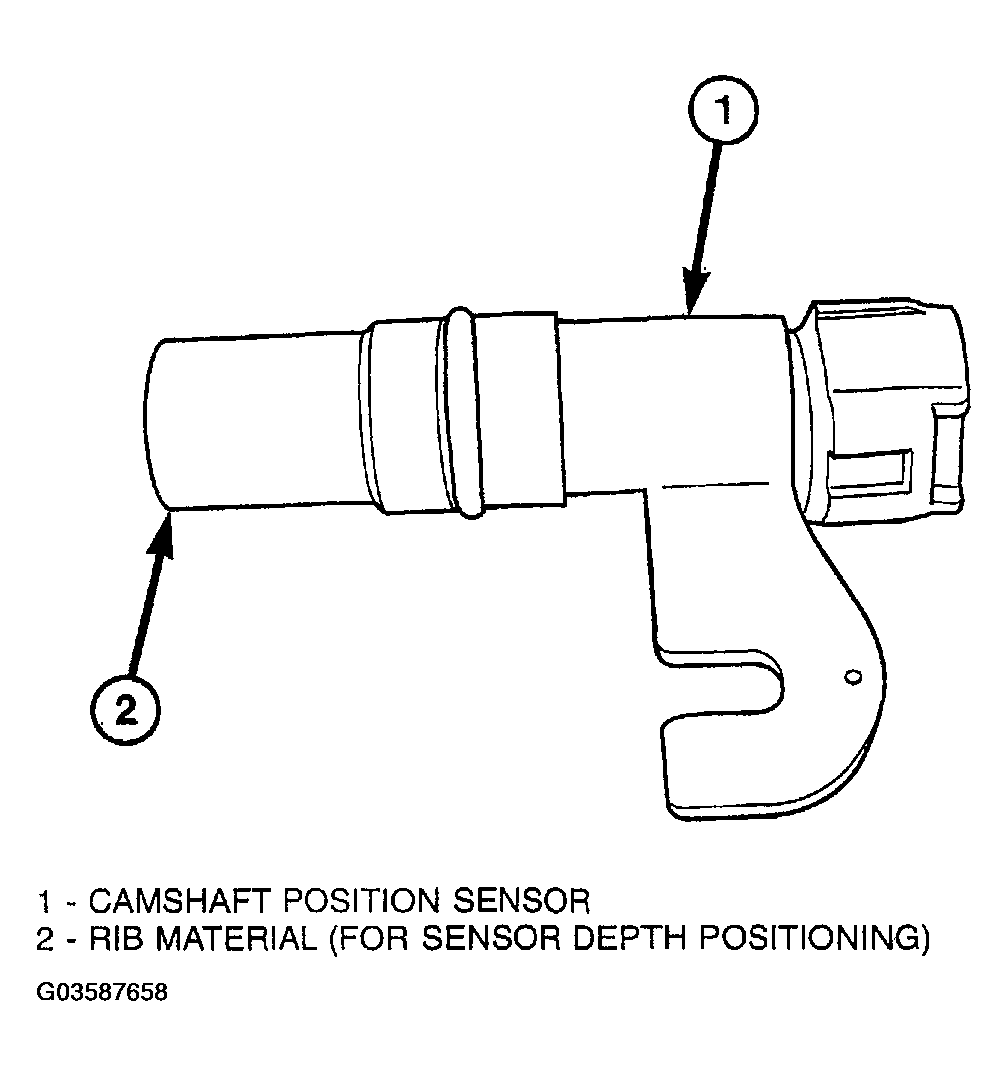

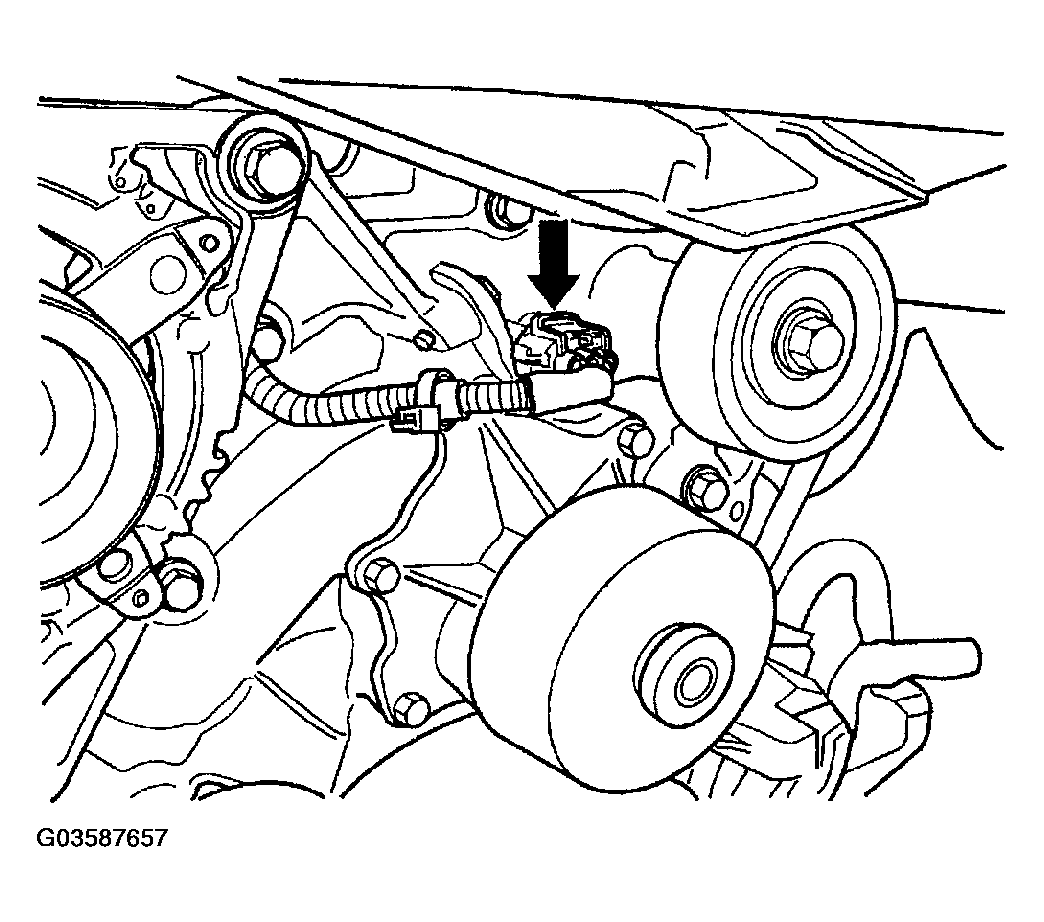

   Fig 1: Identifying Camshaft Position Sensor

   Courtesy of DAIMLERCHRYSLER CORP.

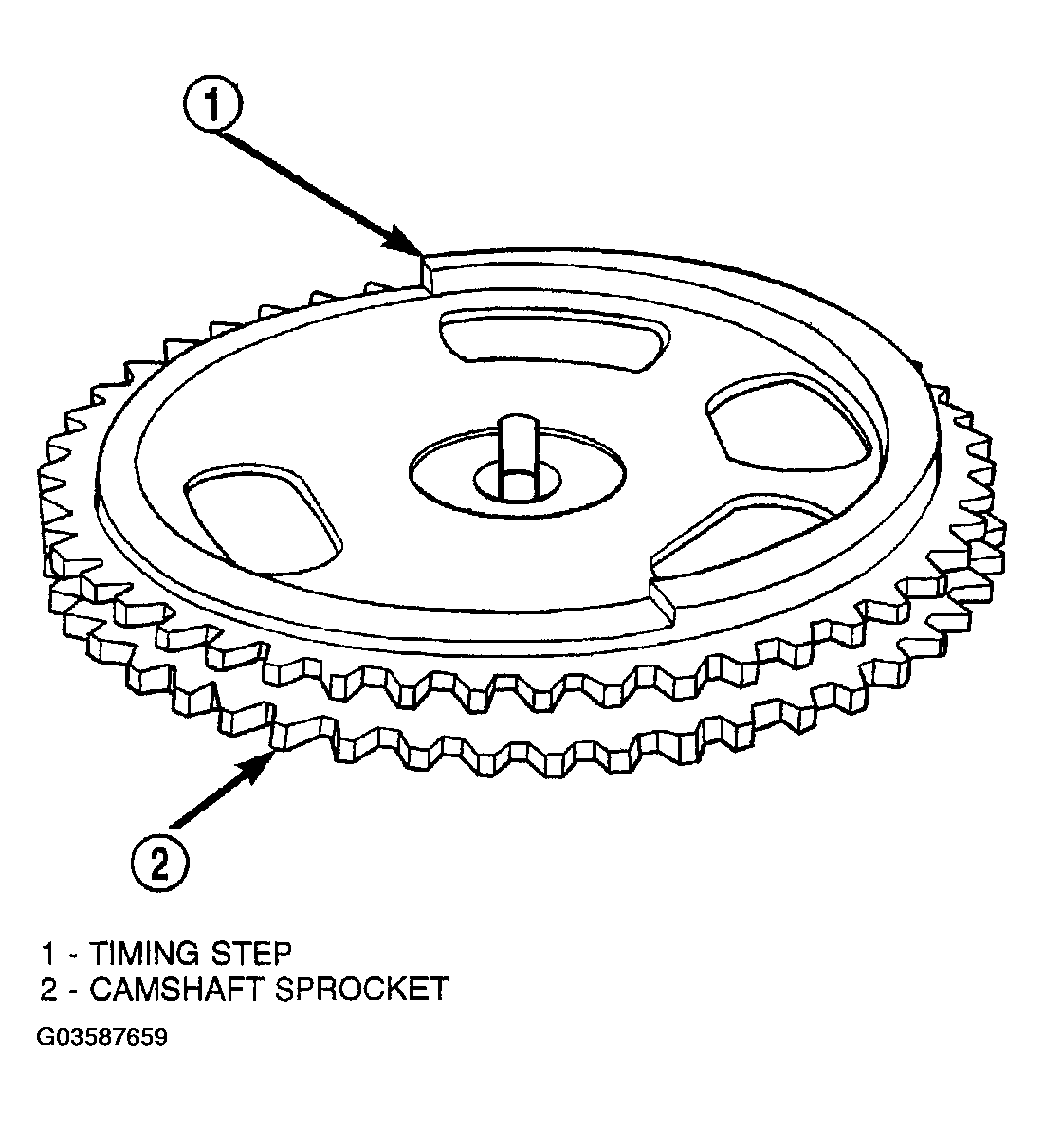

   Fig 2: Identifying Camshaft Sprocket

   Courtesy of DAIMLERCHRYSLER CORP.
2. Remove the sensor mounting bolt.
3. Carefully pry the sensor from the timing chain case/cover in a rocking action with two small screwdrivers.
4. Remove the sensor from vehicle.
