EVAP Leak Detection Test Graph

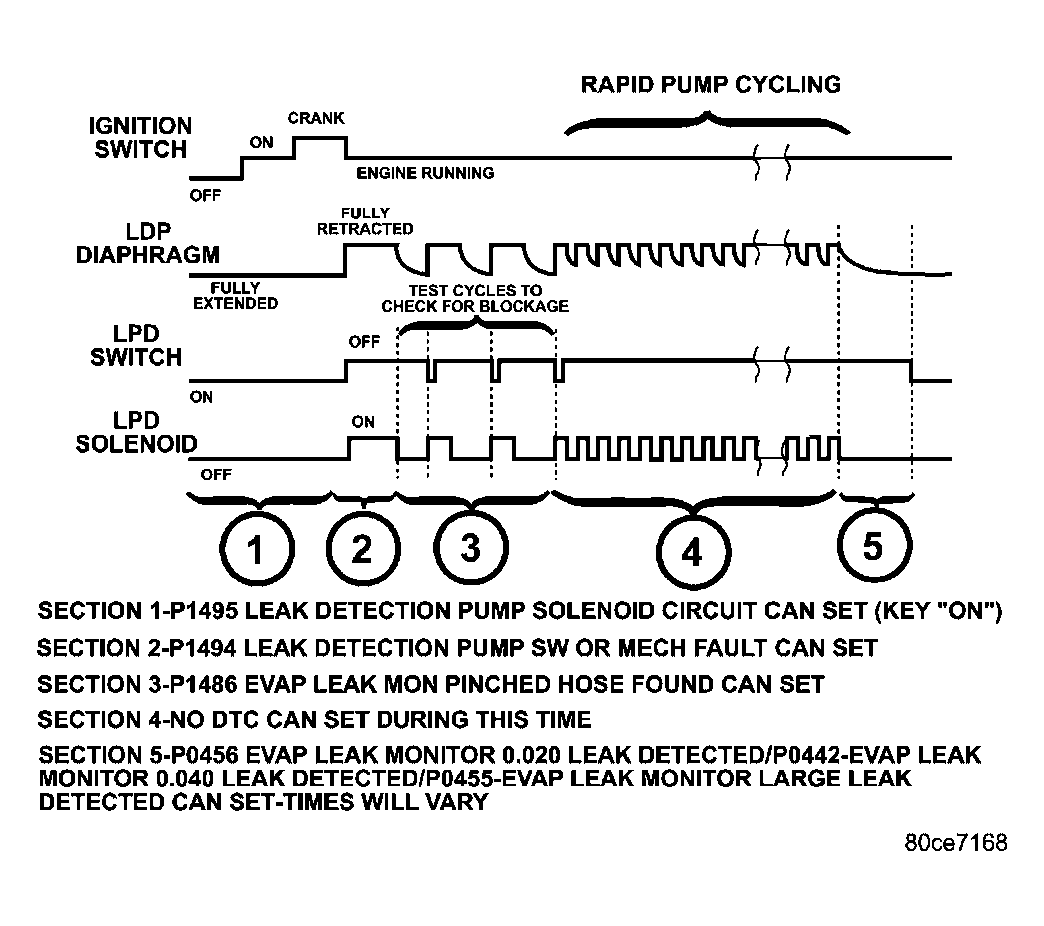

Fig 1: EVAP Leak Detection Test Graph
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
