O2 Sensor Locations

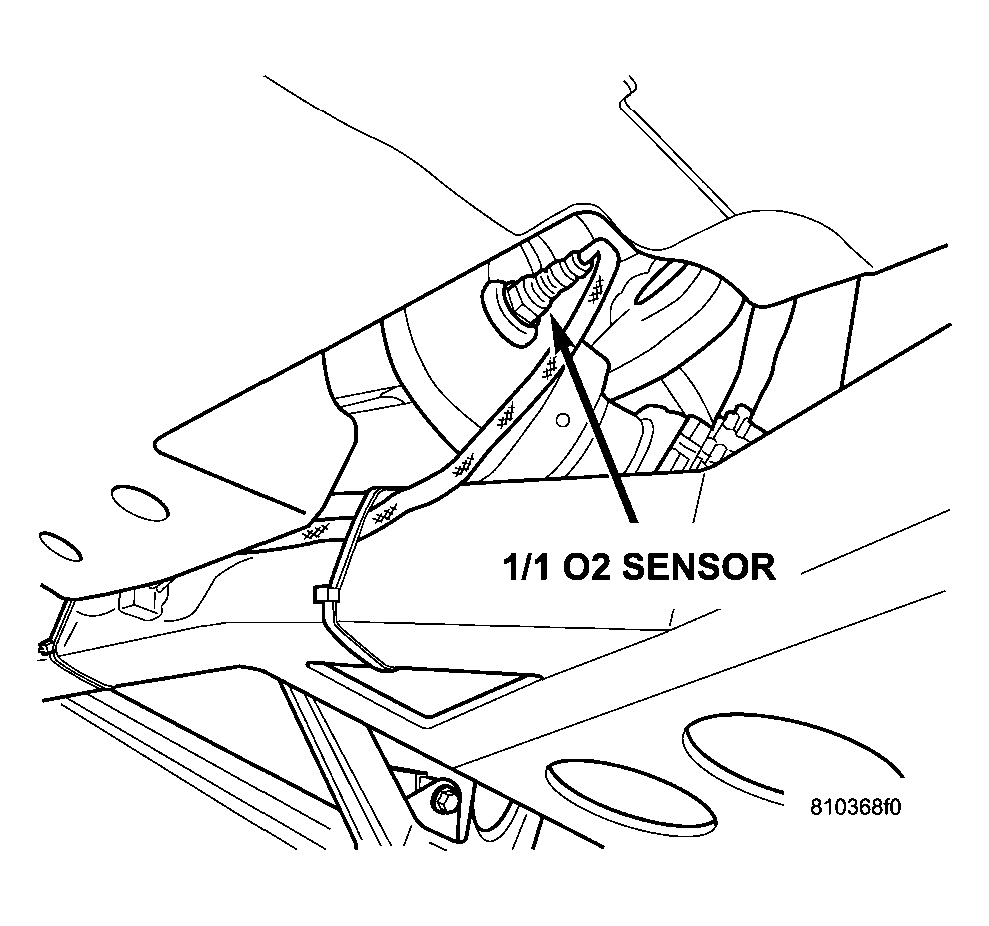

Fig 1: Identifying 1/1 O2 Sensor
G04550305Courtesy of DAIMLERCHRYSLER CORP.

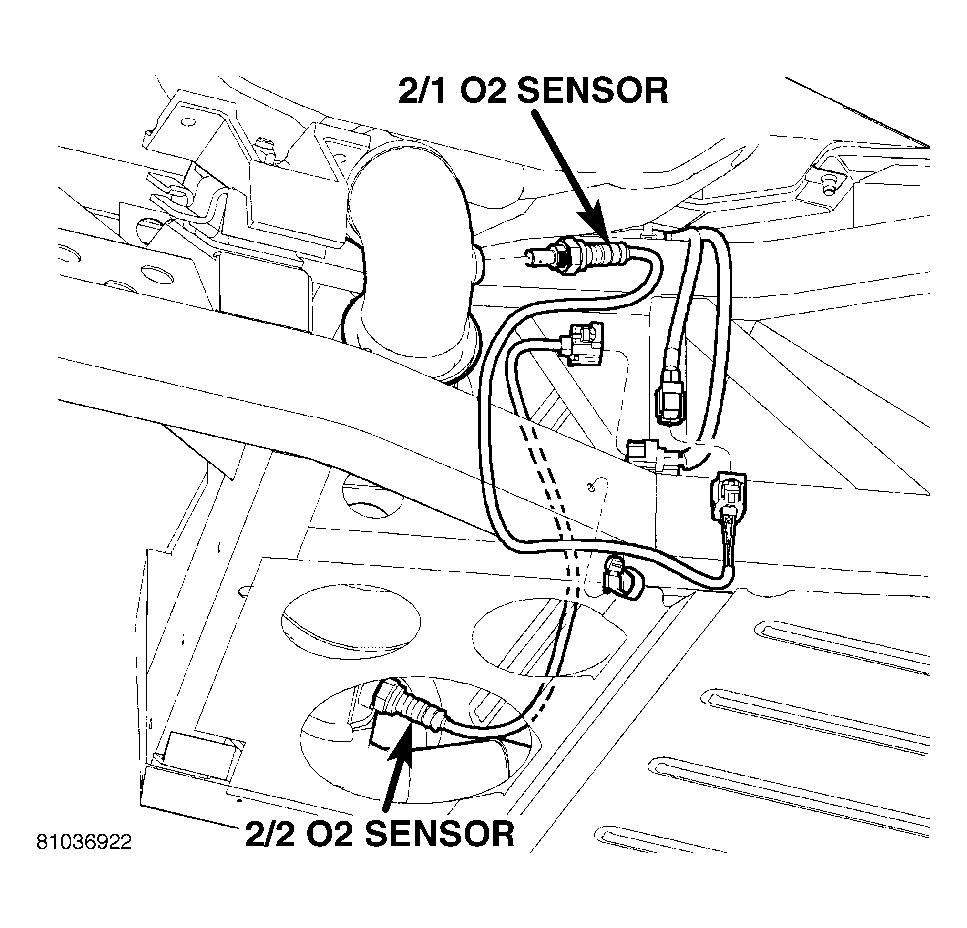

Fig 2: Identifying 2/1 O2 Sensor And 2/2 O2 Sensor
G04550306Courtesy of DAIMLERCHRYSLER CORP.
