Tire Pressure Monitor Module - Blue 6 Way

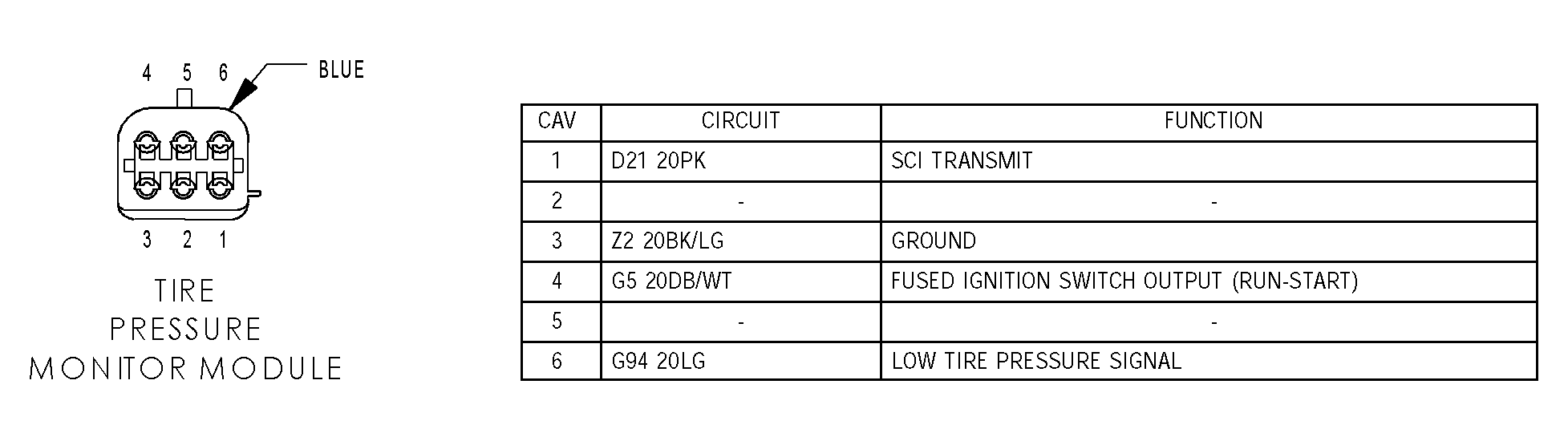

Fig 1: Identifying Tire Pressure Monitor Module - Blue 6 Way Connector Pinout
G04550363Courtesy of DAIMLERCHRYSLER CORP.
