Ignition Control (Service Information): Sensor-Knock: Removal: 2.0L/2.4L

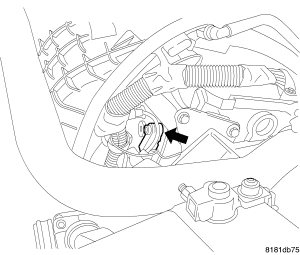

Fig 1: KNOCK SENSOR LOCATION

Courtesy of CHRYSLER LLC

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

1. Disconnect the negative battery cable.
   Fig 2: KNOCK SENSOR

   Courtesy of CHRYSLER LLC
2. Remove the bolt holding the knock sensor.
3. Remove sensor with electrical connector attached.
4. Disconnect electrical connector from knock sensor.
   Fig 3: Knock Sensor

   Courtesy of CHRYSLER LLC
5. Remove the knock sensor.
