Camshaft Position Sensor: Locations

Component ID: 364
Component : SENSOR-CAMSHAFT POSITION

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : GRAY
# of pins : 3
Qualifier : (3.7L)




Pin Description Circuit
1 CMP SIGNAL K44 18DB/GY
2 SENSOR GROUND K900 18DB/DG
3 5 VOLT SUPPLY K857 18BR/LG

Component Location - 16




Component Location - 17

Fig. 17:

Component Location - 20




Component Location - 23






Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (4.0L)
Gender : FEMALE




Pin Description Circuit
1 5 VOLT SUPPLY K857 18BR/LG
2 CMP SIGNAL K44 18DB/GY
3 SENSOR GROUND K900 18DB/DG

Component Location - 16




Component Location - 17

Fig. 17:

Component Location - 20




Component Location - 23

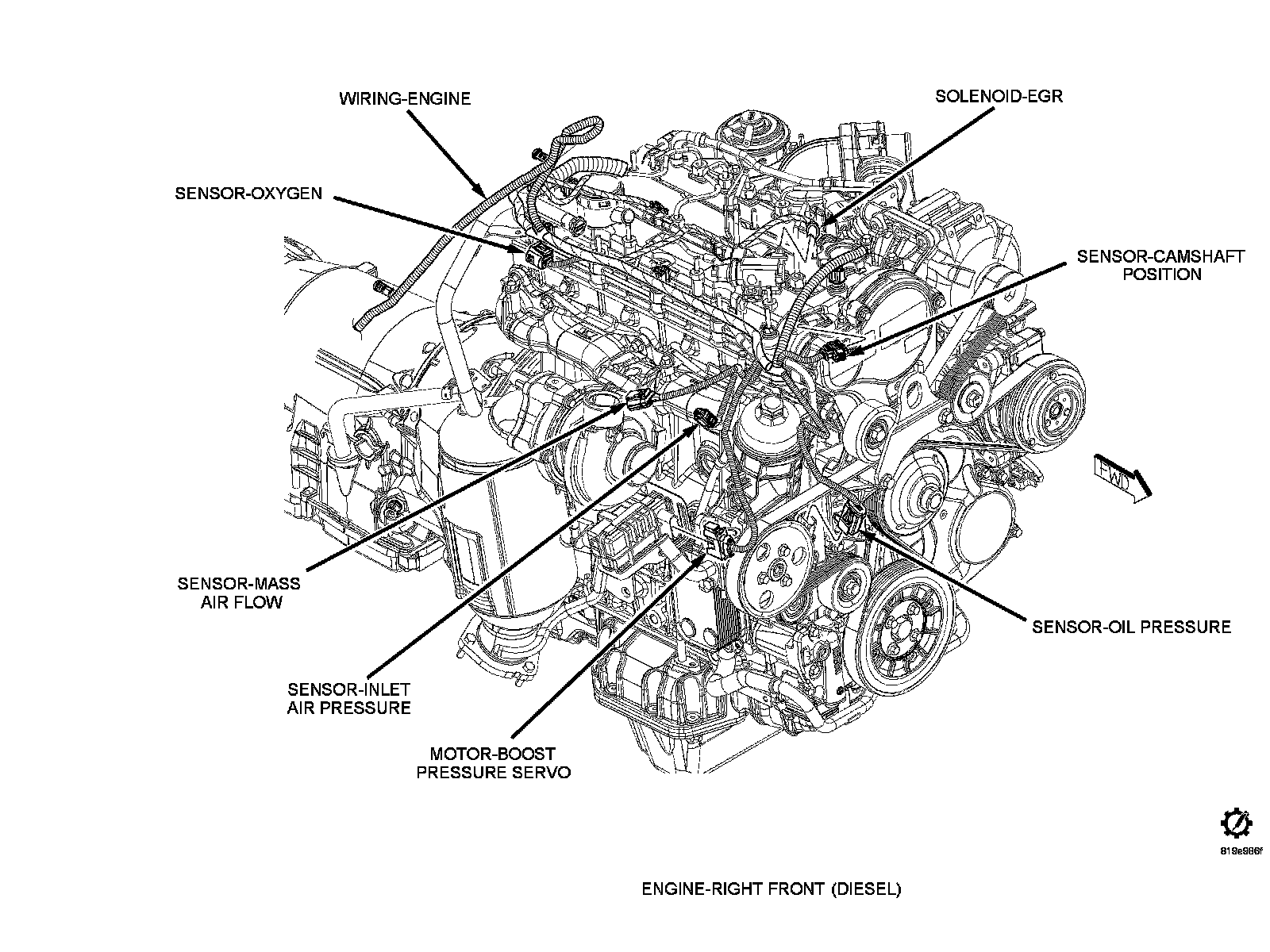

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CMP RETURN K944 20BK/GY
2 CMP SIGNAL K44 20DB/GY
3 CMP 5 VOLT SUPPLY K844 20DB/YL

Component Location - 16




Component Location - 17

Fig. 17:

Component Location - 20




Component Location - 23
