Manifold Pressure/Vacuum Sensor: Locations

Component ID: 381
Component : SENSOR-MAP

Connector:
Name : SENSOR-MAP
Color : GRAY
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 MAP SIGNAL K1 20VT/BR
2 SENSOR GROUND K900 18DB/DG
3 5 VOLT SUPPLY K857 18BR/LG

Component Location - 15

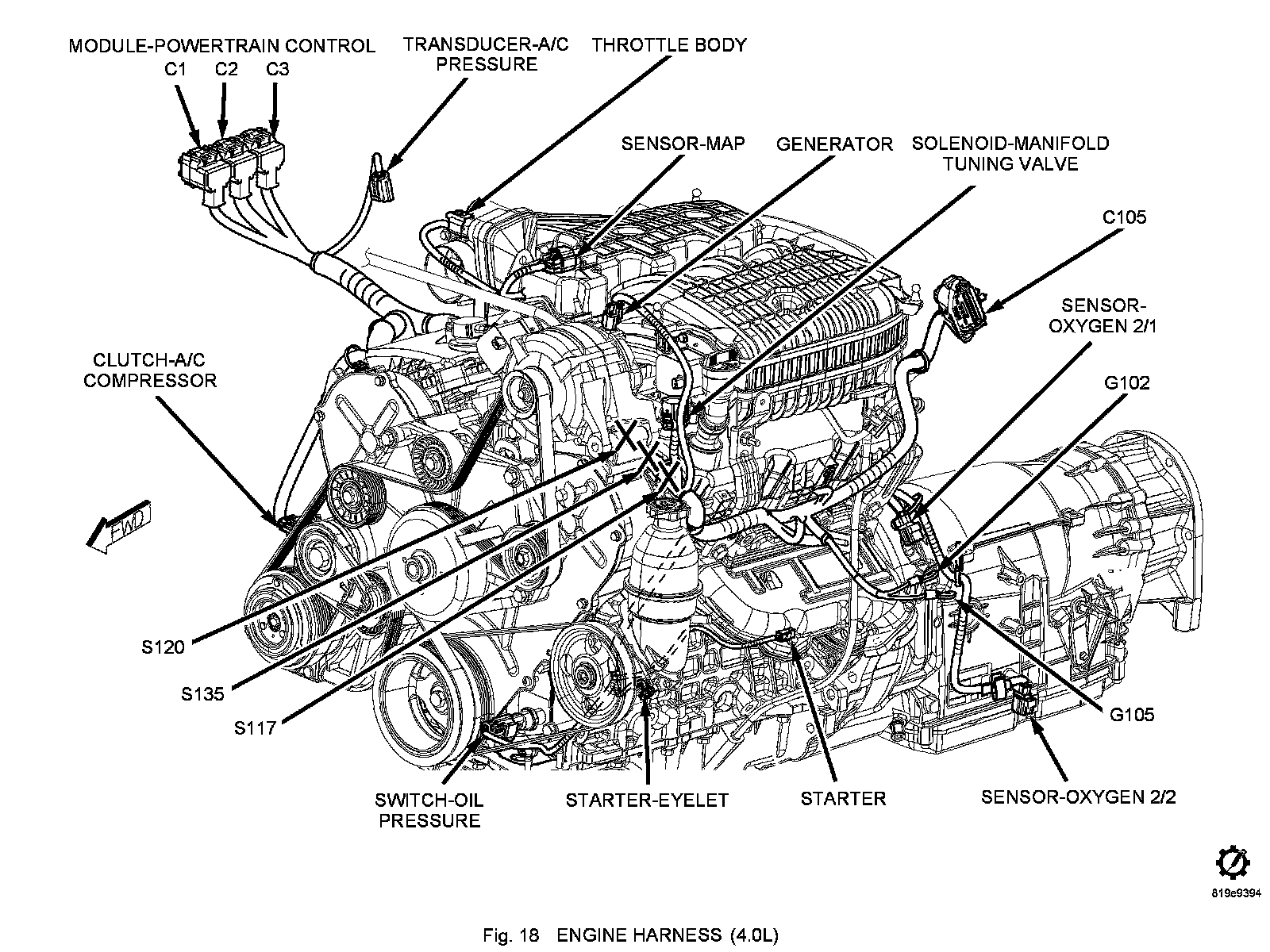

Component Location - 18

Fig. 18:
