2012-Engine Coolant Temperature Sensor Signal Implausible: Notes

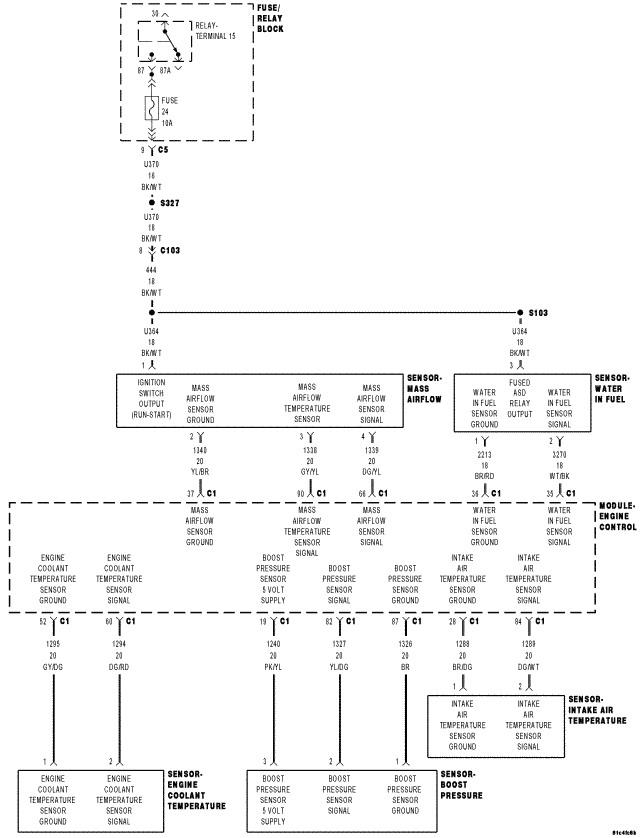

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.
- When Monitored:
With the ignition on.
| Possible Causes |
|---|
| INTERMITTENT DTC |
| ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT SHORTED TO VOLTAGE |
| ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT SHORTED TO VOLTAGE |
| ENGINE COOLANT TEMPERATURE SENSOR SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE |
| ENGINE COOLANT TEMPERATURE SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE |
| ENGINE COOLANT TEMPERATURE SENSOR |
| ENGINE CONTROL MODULE (ECM) |
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
