2543-Injector Wiring General Error: Notes

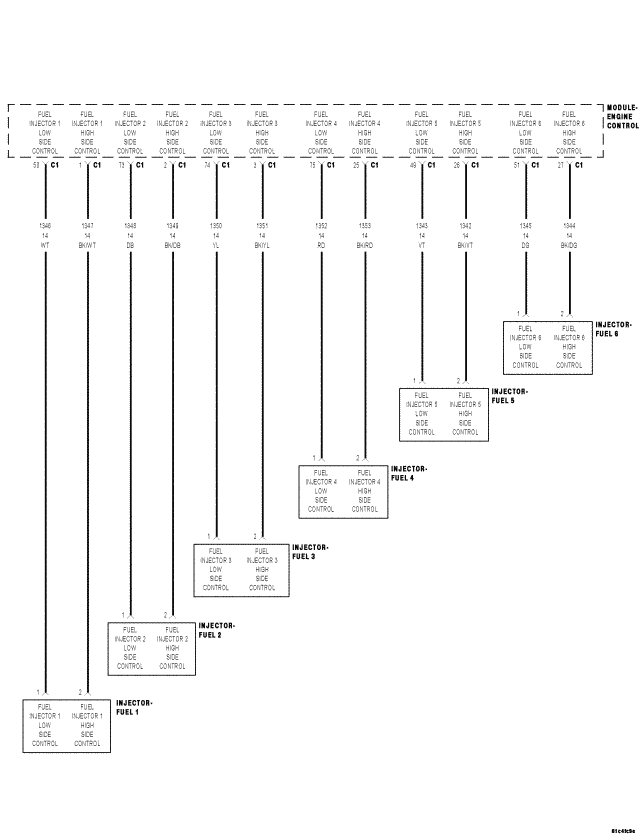

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.
- When Monitored:
With the engine running.
- Set Condition:
The ECM detects a fail in the Fuel Injector(s) circuit.
| Possible Causes |
|---|
| INTERMITTENT DTC |
| FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE |
| FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT SHORTED TO VOLTAGE |
| FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO GROUND |
| FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT SHORTED TO GROUND |
| FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT SHORTED TO FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT |
| FUEL INJECTOR HIGH-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE |
| FUEL INJECTOR LOW-SIDE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE |
| FUEL INJECTOR |
| ENGINE CONTROL MODULE (ECM) |
Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
