Oil Pan, Engine







INSTALLATION

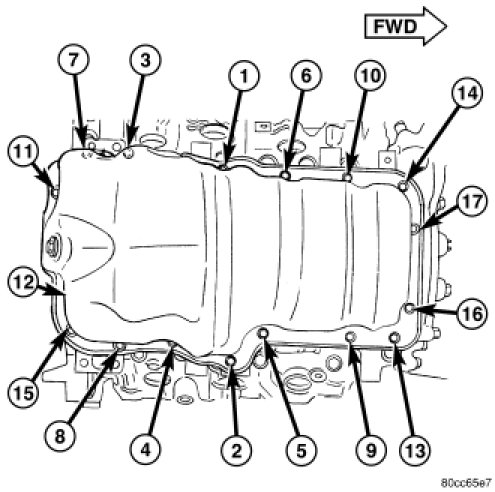

Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 16 Nm (140 in. lbs.) in the sequence shown.
