Installation

INSTALLATION

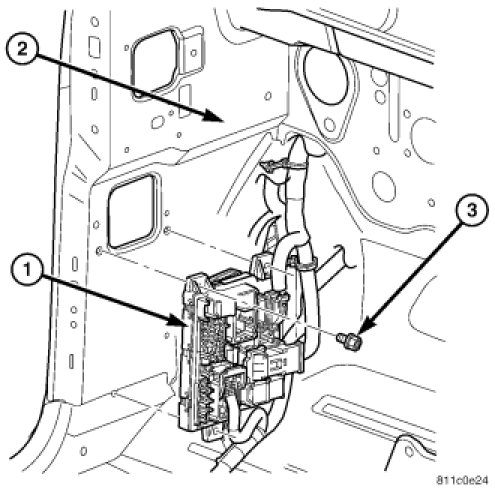

1. Connect wire harness connectors to the Junction Block (JB) (1).
2. Position JB and install mounting fasteners (3).
3. Install left cowl trim cover).
4. Connect the battery negative cable.
