Crankshaft Position Sensor: Locations

Component ID: 373
Component : SENSOR-CRANKSHAFT POSITION

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (3.7L)




Pin Circuit Description
1 K24 20VT/DG CKP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F855 20PK/YL 5 VOLT SUPPLY

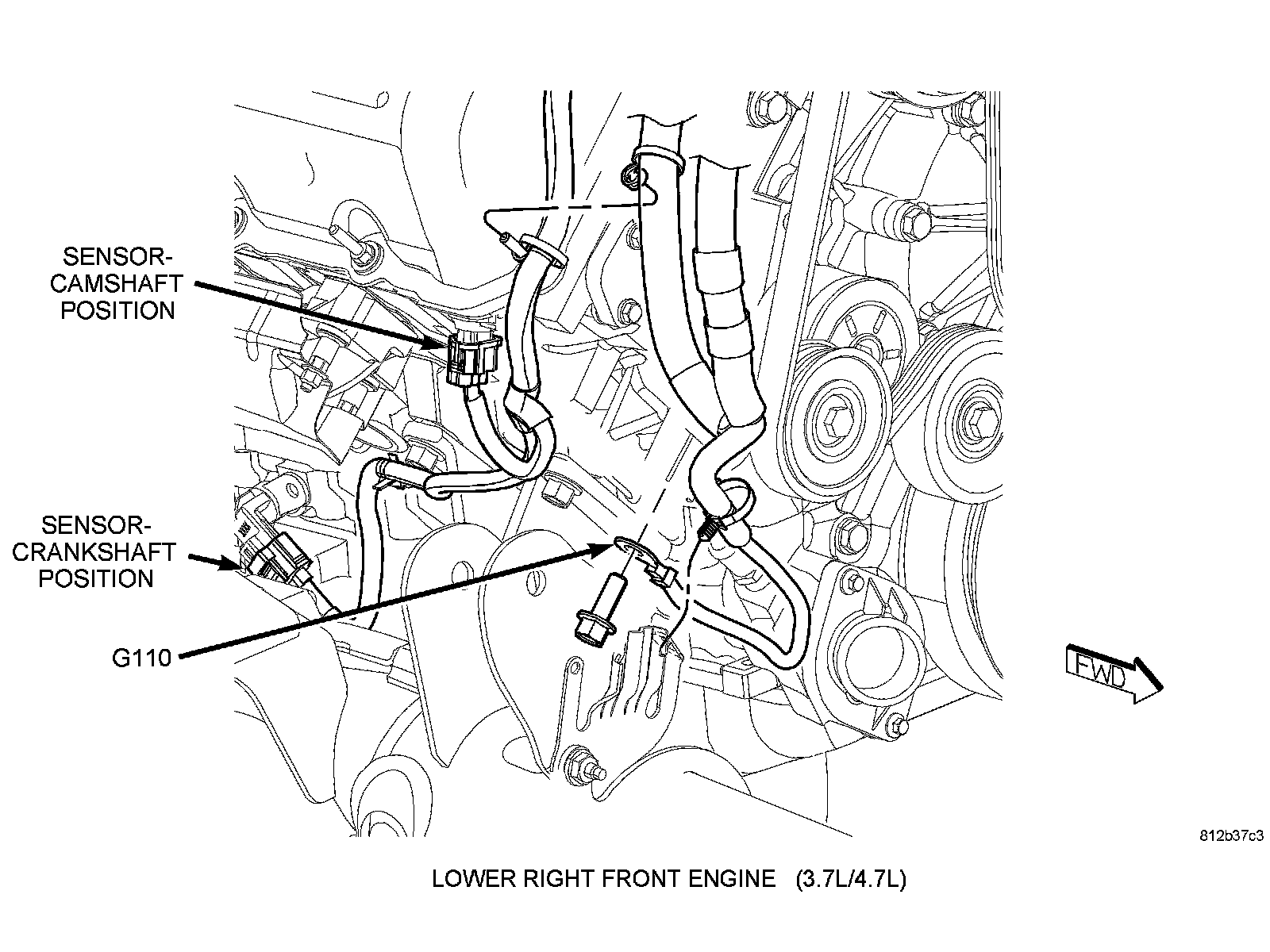

Component Location - 17




Component Location - 25




Component Location - 6






Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (4.7L)




Pin Circuit Description
1 K24 20VT/DG CKP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 F855 20PK/YL 5 VOLT SUPPLY

Component Location - 17




Component Location - 25




Component Location - 6






Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color :
# of pins : 3
Qualifier : (5.7L)




Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 20VT/DG CKP SIGNAL

Component Location - 17




Component Location - 25




Component Location - 6
