Intake Manifold

TORQUE

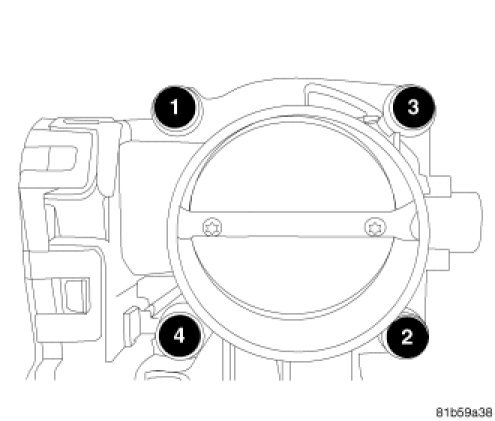

CAUTION: The throttle body mounting bolts MUST be torqued to specifications. DO NOT OVER TIGHTEN MOUNTING BOLTS. Over tightening can cause damage to the throttle body, throttle plate, gaskets, bolts and/or the intake manifold. Proper torque of the mounting bolts is critical to normal operation.

Install manifold retaining bolts and torque from the center bolts, moving front to back in a crisscross pattern to 12Nm (106 in. lbs.).
