INSTALLATION





1. Before installing ignition switch (1), rotate the slot in the switch to the ON position.
2. Connect the electrical connector to rear of the ignition switch. Make sure that locking tabs are fully seated into wiring connector.

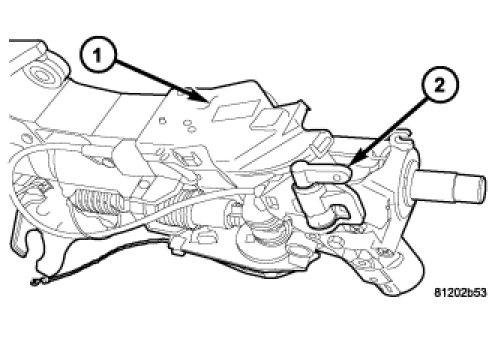

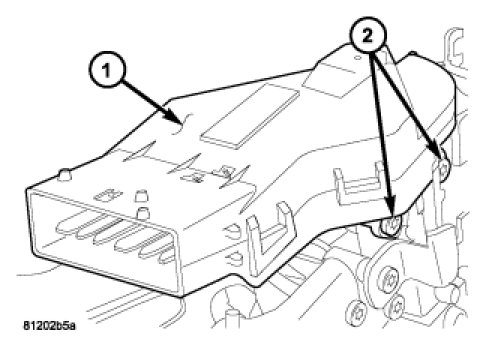

3. Position switch to column and install the mounting screws (2). Tighten screw to 3 Nm (26 in. lbs.).




4. Install the tilt lever bracket (2) mounting screws. Tighten screws to 4.5 Nm (40 in. lbs.).
5. Position the wire retainer into the tilt lever bracket.
6. Reconnect the lower clockspring connectors.

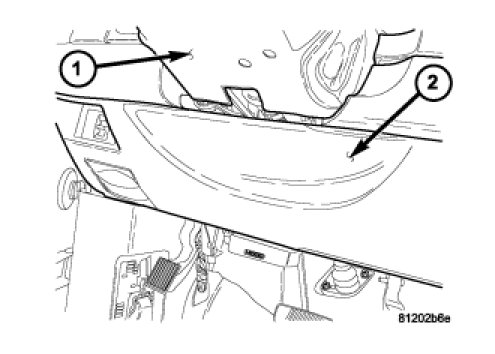

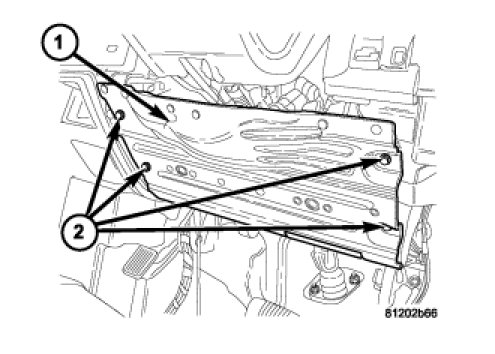

7. Install the steering column opening reinforcement (1).




8. Install the steering column opening cover (2).

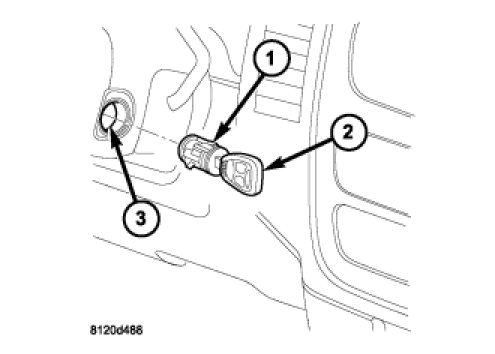

9. Install the key cylinder (1) with the key (2) in the cylinder (1).

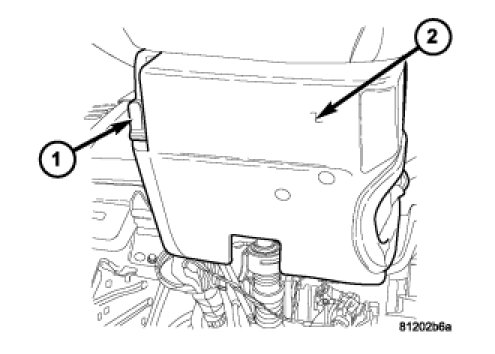

10. Install steering column upper and lower shrouds (2).
11. Install the tilt lever knob (1).
12. Enable the airbag system. Driver Airbag - Installation.
