Integrated Power Module



FUSES (INTEGRATED POWER MODULE)

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the battery. This center contains cartridge fuses, mini fuses and relays. A label that identifies each component is printed on the inside of the cover.over.

Totally Integrated Power Module (TIPM):

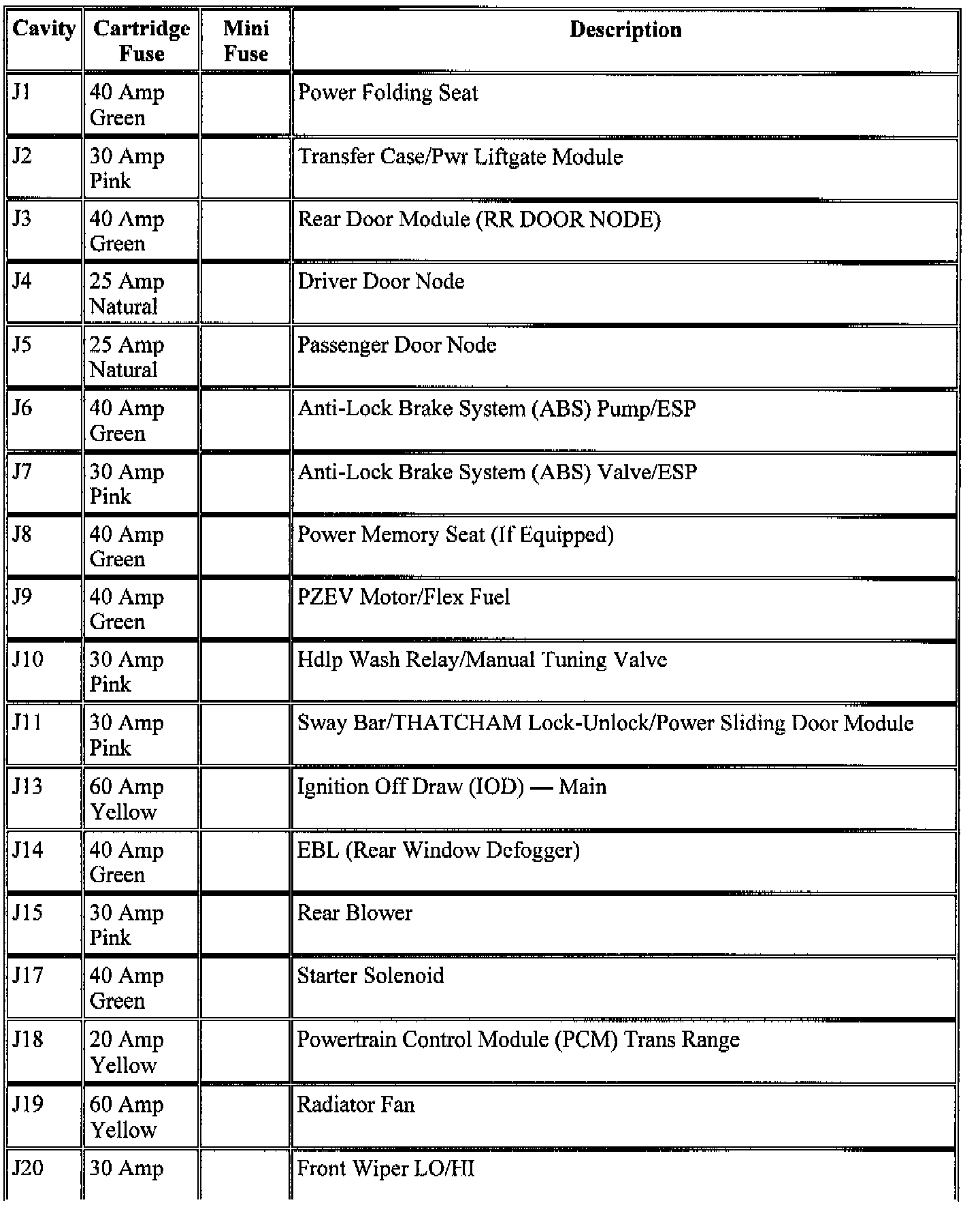

Fuse J1 - J20:

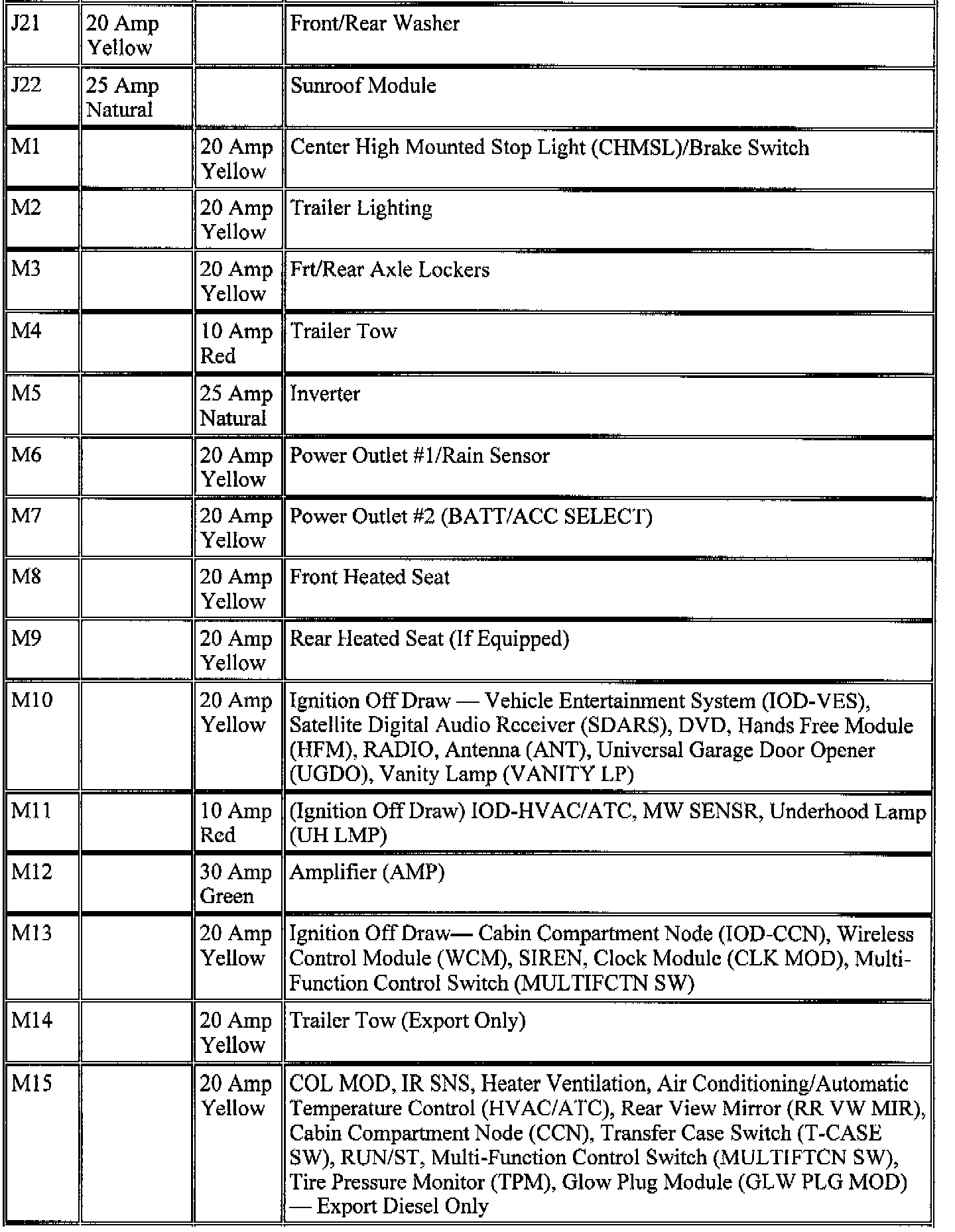

Fuse J21 - M15:

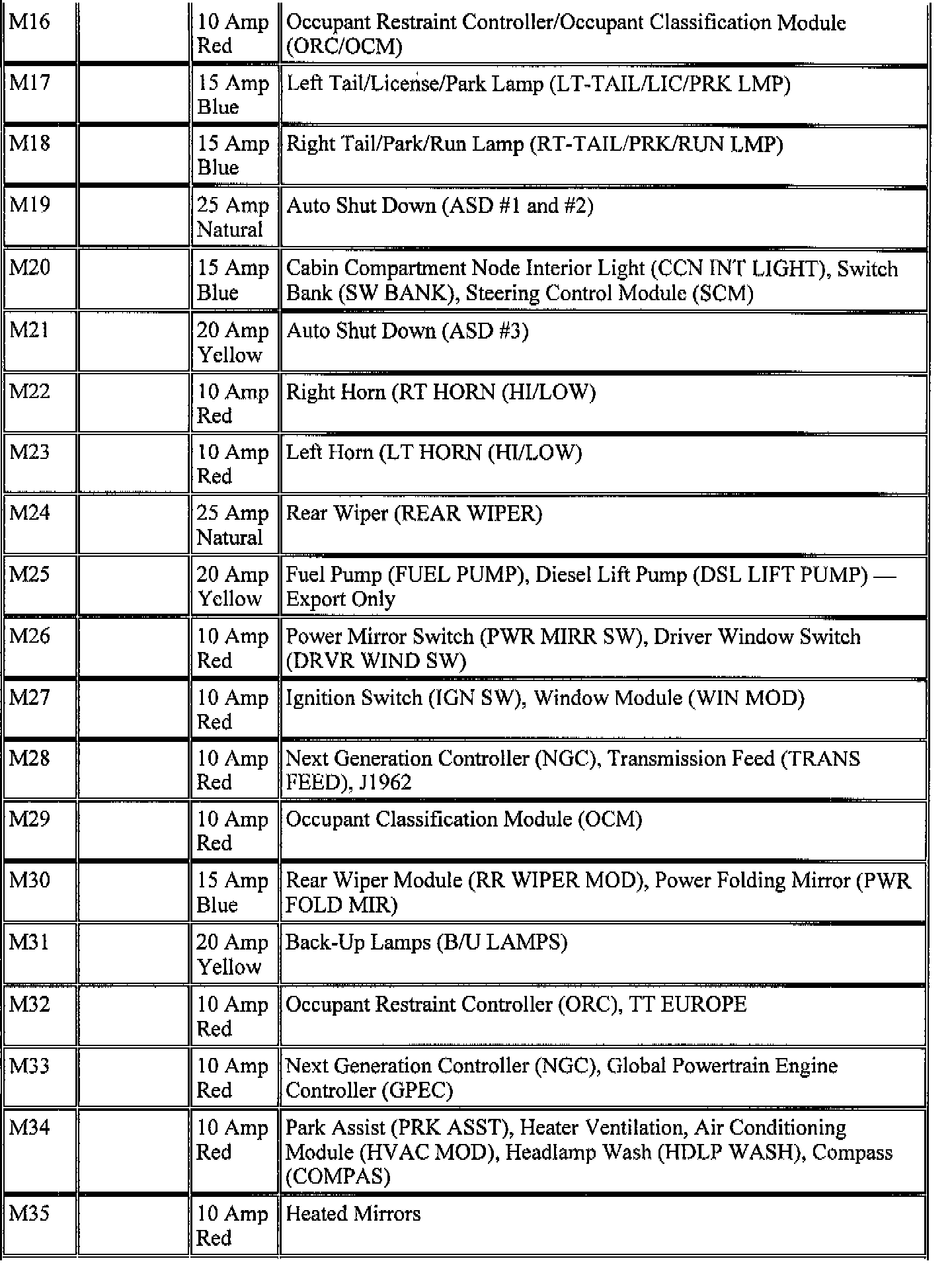

Fuse M16 - M35:




Fuse M36 - M38:




Relay's:




Caution:
