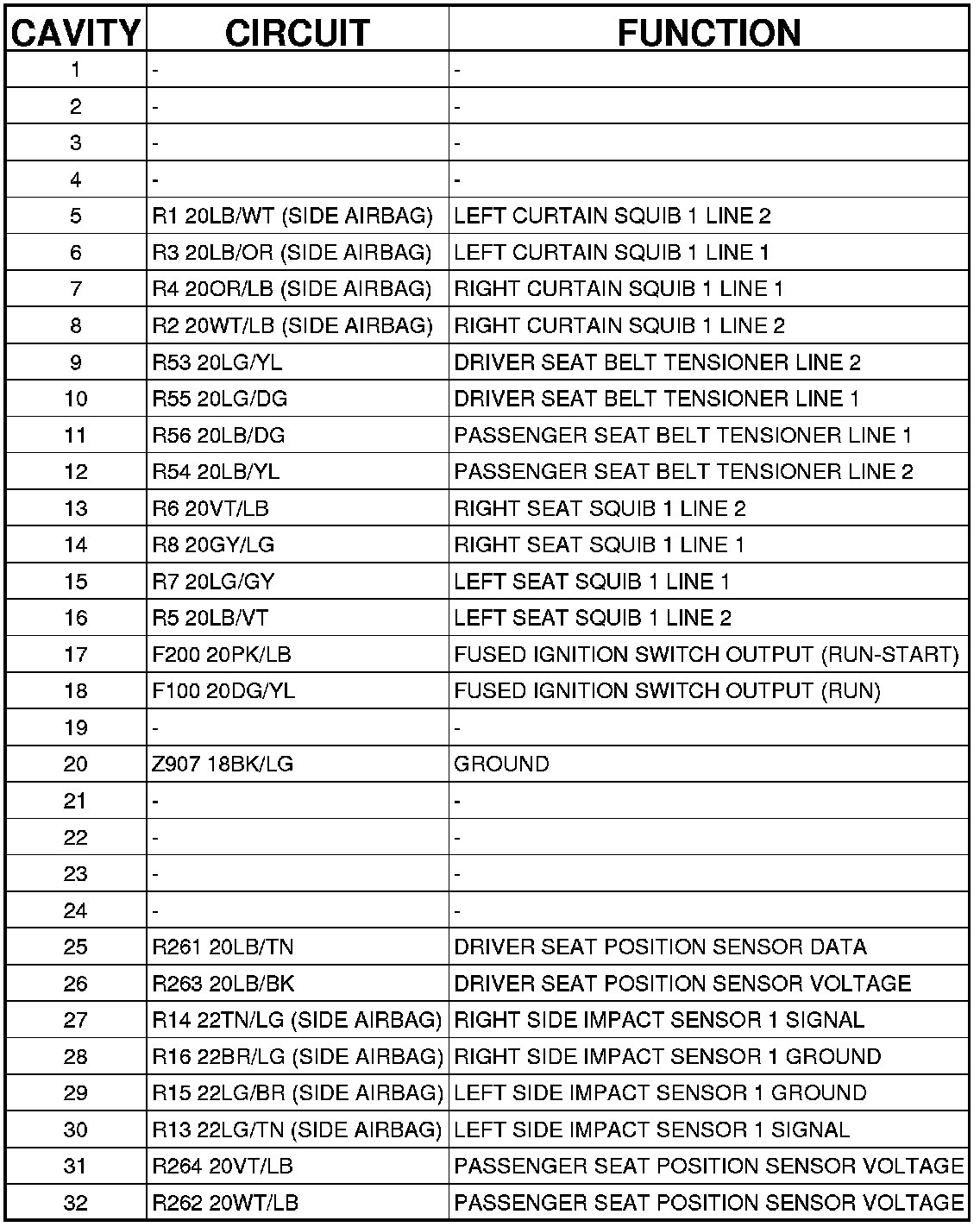

Occupant Restraint Controller Module C2 (Body) 32 Way

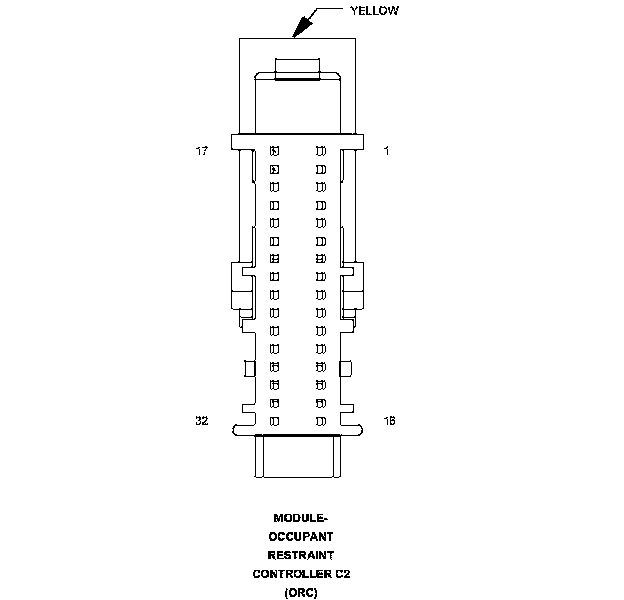

Connector - (BODY) 32 WAY
MODULE-OCCUPANT RESTRAINT CONTROLLER C2 - (BODY) 32 WAY
