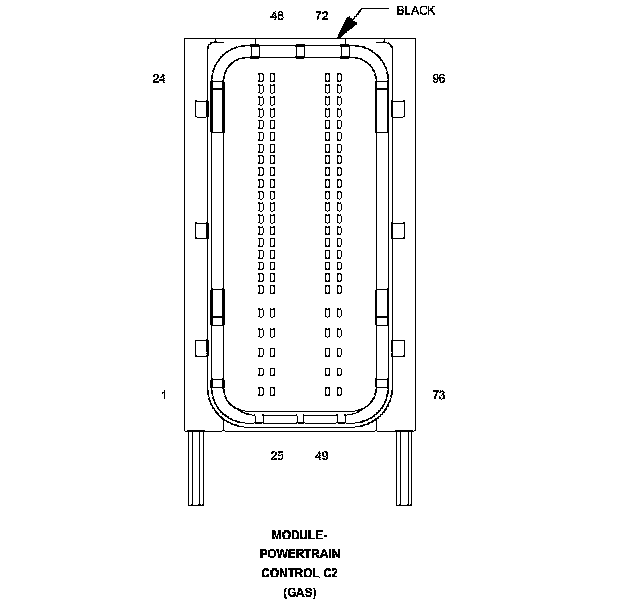

Powertrain Control Module C2 (Engine Compartment) 96 Way

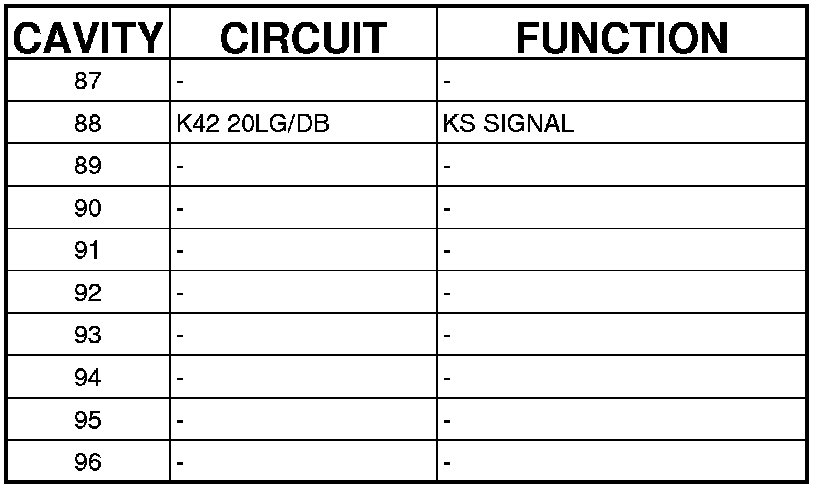

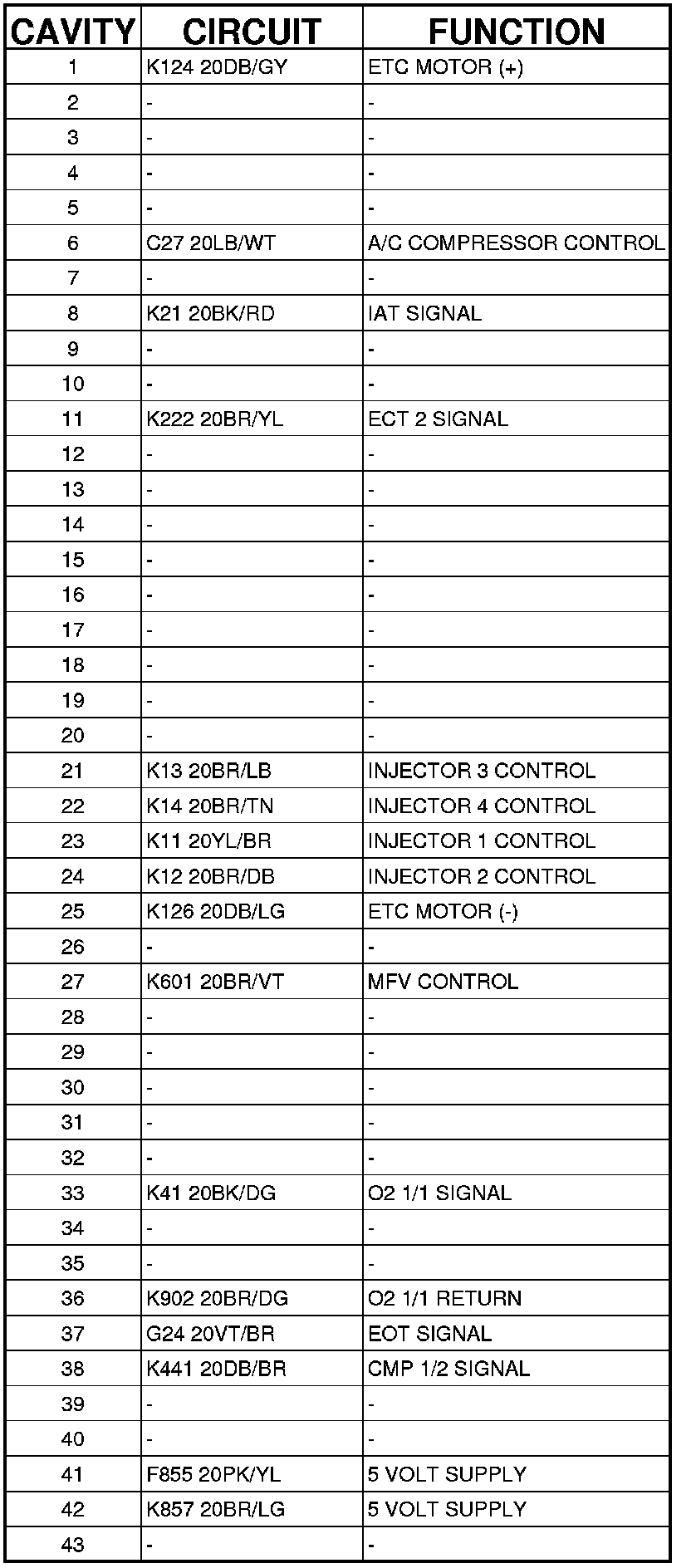

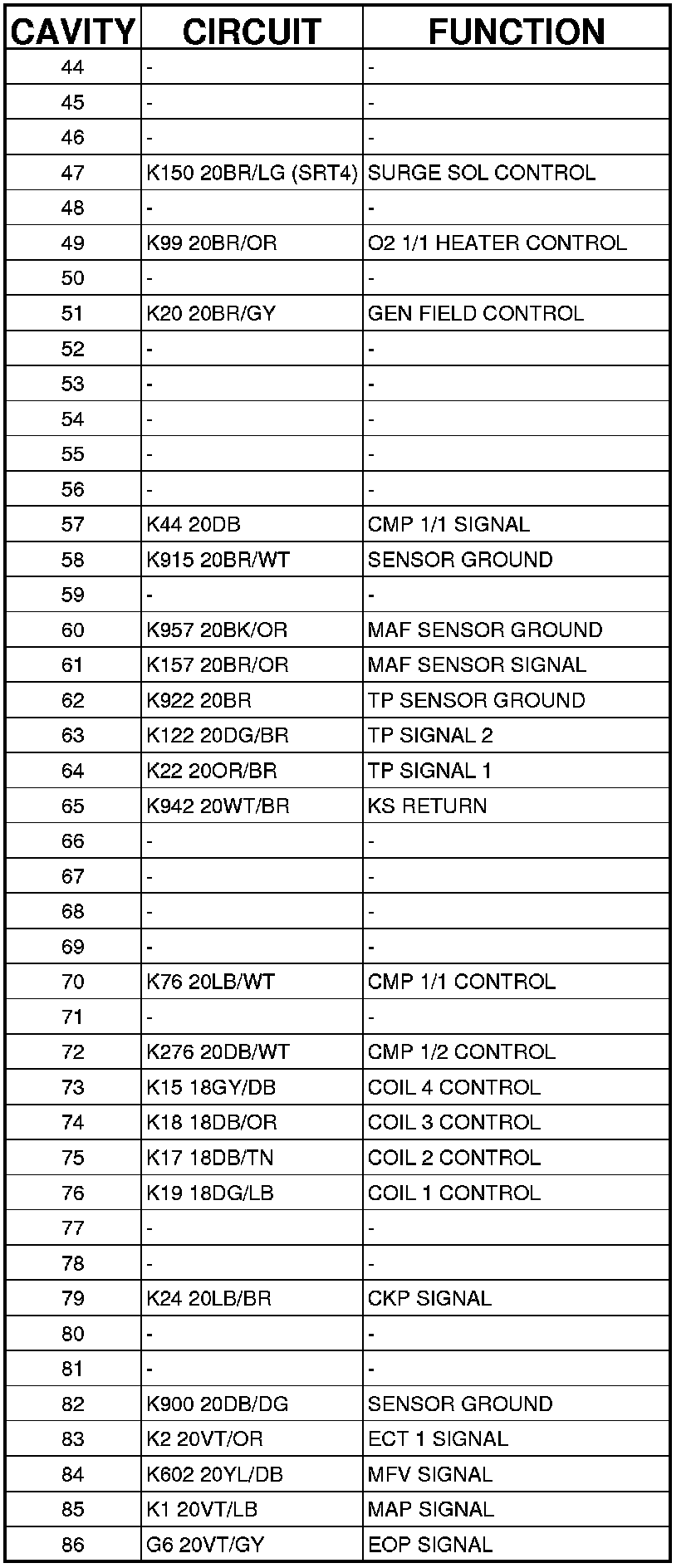

Connector C2 (GAS) - (ENGINE COMPARTMENT) 96 WAY




MODULE-POWERTRAIN CONTROL (GAS) - (ENGINE COMPARTMENT) 96 WAY
