Totally Integrated Power Module C3 (Engine Compartment) 16 Way

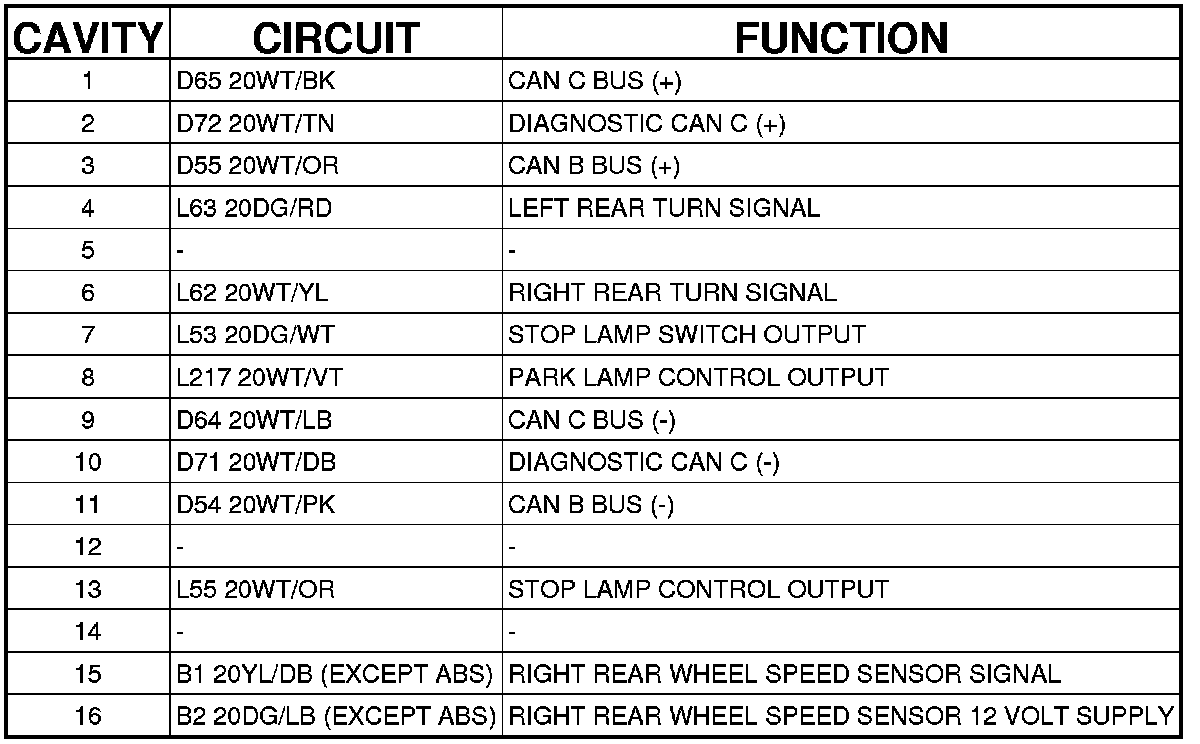

Connector C3 - (ENGINE COMPARTMENT) 16 WAY

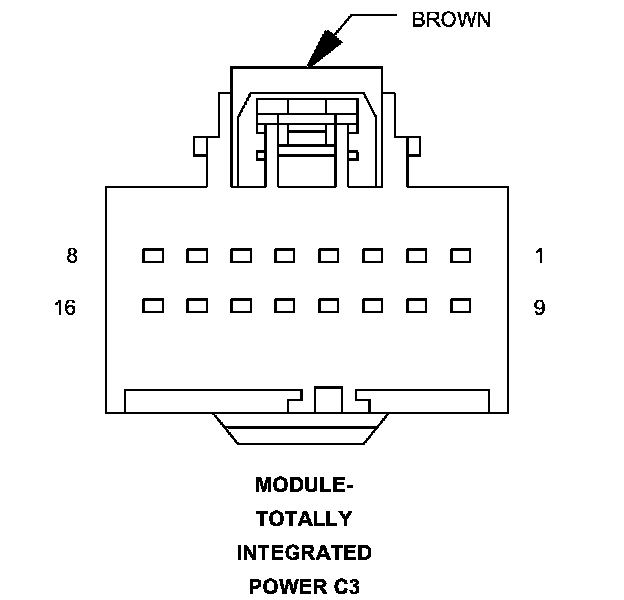

C3 TIPM - (ENGINE COMPARTMENT) 16 WAY
