Totally Integrated Power Module C8 (Engine Compartment) 22 Way

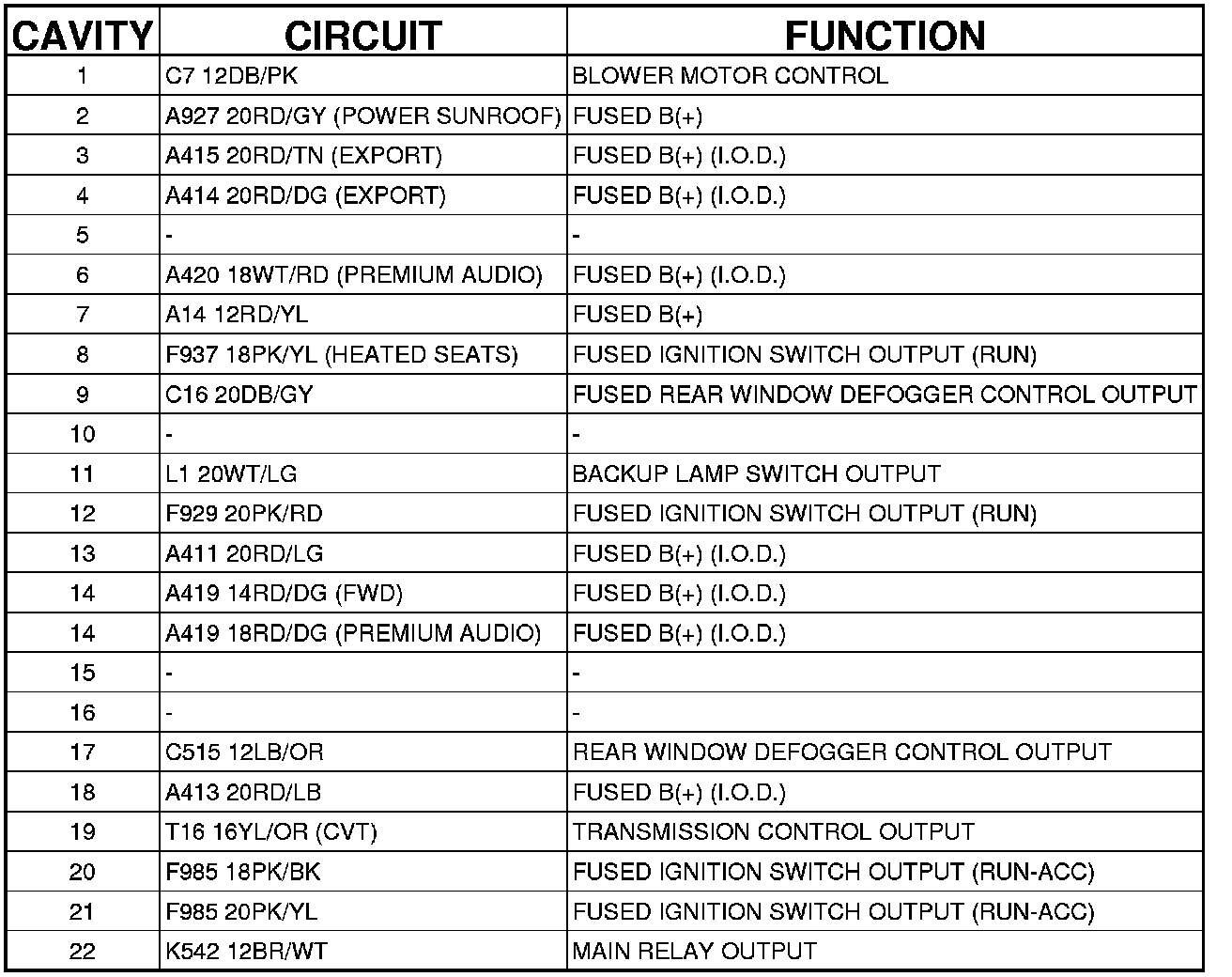

Connector C8 - (ENGINE COMPARTMENT) 22 WAY




C8 TIPM - (ENGINE COMPARTMENT) 22 WAY
