Door Module - Removal






REMOVAL






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel Front Door Trim Panel - Removal.
3. Disconnect electrical harness connectors.

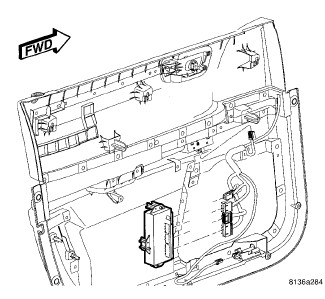

4. Remove mounting fasteners and module.
