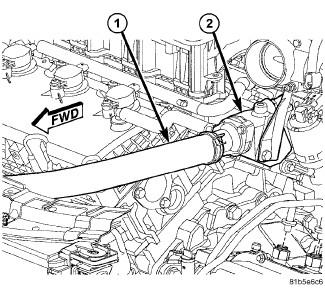

Engine Coolant Temperature Sensor - Installation






3.5L ENGINE










1. Install engine coolant temperature sensor. Tighten sensor to 28 Nm (20 ft. lbs.) torque.
2. Attach electrical connector to sensor.
3. Fill cooling system Service and Repair.
4. Connect negative battery cable.
