CAPACITOR, Ignition: Installation: 2.4L
Courtesy of CHRYSLER LLC

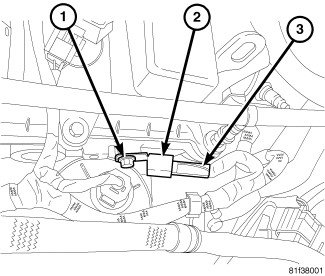

| 1 - Bolt |
| 2 - Capacitor |
| 3 - Connector |
- Install ignition coil capacitor (2) and bolt (1), tighten bolt to 10 N.m (88.5 ft. lbs.).
- Connect electrical connector (3).
- Install engine cover.
- Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
