Powertrain Control Module - Removal






PCM - REMOVAL





1. Remove the air intake duct.
2. Disconnect negative battery cable.

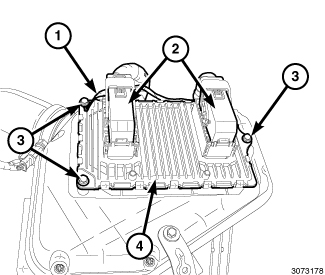

3. Disconnect the Powertrain Control Module (PCM) harness connectors (2) by pressing in the locking tab and lift the lever.
4. Remove bolts (3) and the PCM (4) from the air cleaner housing.
