Park Assist Module - Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the rear storage box from the cargo area, Rear Storage Box - Removal.
3. Remove the rear liftgate opening sill plate (1), Scuff Plate - Removal.

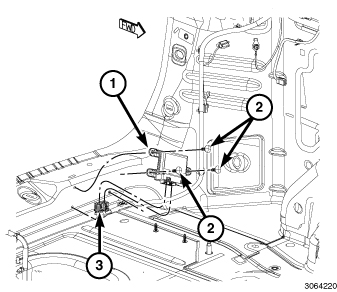

4. Disconnect the body wire harness connectors (3) from the park assist module connector receptacles.
5. Remove the push-pin type retainers (2) that secure the park assist module (1) to the vehicle.
6. Remove the module from the vehicle.
