Installation

INSTALLATION - 4.0L

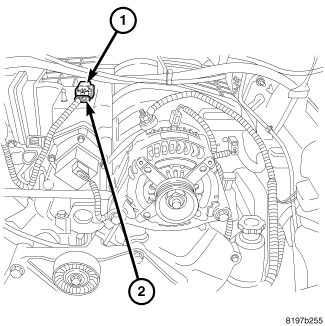

The Manifold Absolute Pressure (MAP) sensor (2) is mounted into the top/front of the upper half of the intake manifold.

An O-ring is used to seal the sensor to the intake manifold.

1. Check condition of sensor O-ring.
2. Position MAP sensor into intake manifold. Note locating tangs.
3. Rotate sensor 1/4 turn clockwise.
4. Connect electrical connector (1) at sensor (2).
5. Connect negative battery cable. Tighten nut to 5 Nm (45 in.lbs.).
