Charging System (Service Information): Generator: Installation: 2.8L

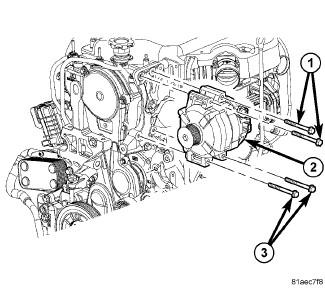

Fig 1: Generator 2.8L

Courtesy of CHRYSLER GROUP, LLC

1. Position generator (2) to engine and install four mounting bolts (3) and (1). Tighten all bolts to 28 N.m (21 ft. lbs.).

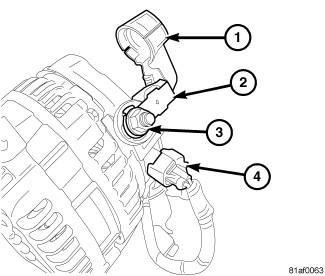

   Fig 2: Alternator/Generator Electrical Connection

   Courtesy of CHRYSLER GROUP, LLC
2. Connect field wire connector (4) into generator.
3. Install B+ terminal (2) and nut (3) to generator mounting stud. Tighten nut to 13 N.m (115 in. lbs.)
4. Snap plastic protective cover (1) to B+ terminal.
5. Install drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
6. Connect the negative battery cable, tighten the nut to 5 N.m (45 in. lbs.).
