Charging System (Service Information): Generator: Installation: 3.6L

Fig 1: Remove/Install Generator

Courtesy of CHRYSLER GROUP, LLC

Place the generator (2) to the engine and install the retainers (1).
Tighten the generator mounting retainers to 25 N.m (18.4 Ft. Lbs.).

Fig 2: Generator Field Electrical Connector & B+ Retainer
Courtesy of CHRYSLER GROUP, LLC
Install the B+ cable (3) and retainer (2).
Tighten the B+ retainer to 13 N.m (9.5 Ft Lbs.).
Install the generator field connector (1).

Fig 3: Identifying Belt Tensioner, Accessory Drive Belt
Courtesy of CHRYSLER GROUP, LLC
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

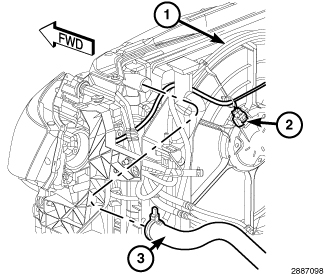

Fig 4: Cooling Fan, Module & Upper Radiator Hose
Courtesy of CHRYSLER GROUP, LLC
Install the cooling fan (1). Refer to FAN, COOLING, INSTALLATION .

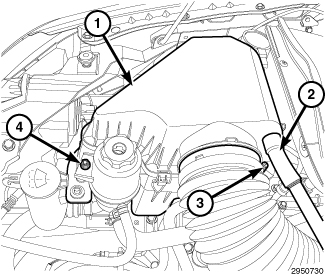

Fig 5: Air Cleaner Body, Fresh Air Makeup Hose, Clamp & Nut
Courtesy of CHRYSLER GROUP, LLC
Install the air cleaner body (1). Refer to BODY, AIR CLEANER, INSTALLATION .
Connect the negative battery cable.
