Radiator, Engine Cooling: Installation: Gas
Courtesy of CHRYSLER GROUP, LLC

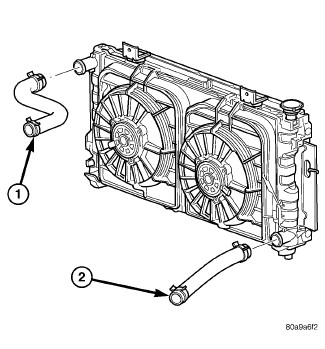

| 1 - UPPER HOSE |
| 2 - LOWER HOSE |
- Be sure the air seal is in position before radiator is installed.
Slide radiator down into position. Seat the radiator with the rubber isolators into the mounting holes provided, with a 10 lbs. force.
- Position air conditioning condenser onto the radiator lower mounts and engage upper mounting tabs.
- Install the radiator upper and lower hoses (1, 2).
- Connect the coolant recovery hose.
- Connect the vapor purge solenoid to the mounting bracket.
- Install the radiator fans. Refer to FAN, COOLING, INSTALLATION .
- Install the radiator upper crossmember support. Refer to CROSSMEMBER, RADIATOR, INSTALLATION
.
- Fill the cooling system. Refer to STANDARD PROCEDURE .
- Connect negative cable to battery.
