Front Fender - Installation

INSTALLATION

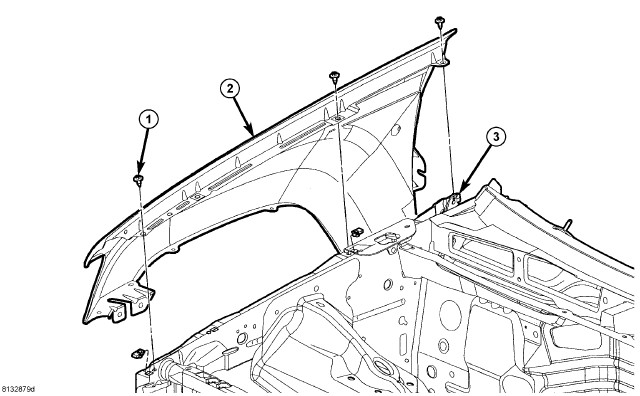

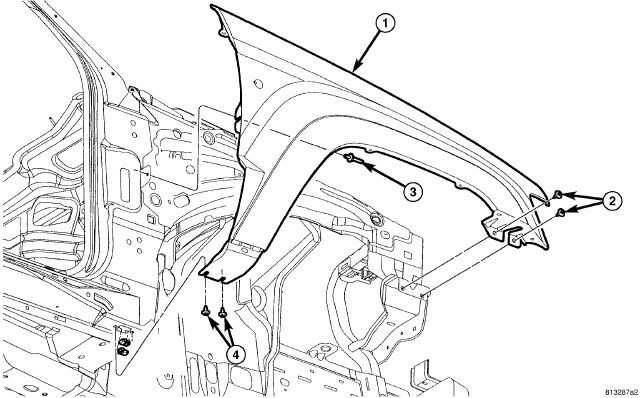

1. Position fender on body.
2. Install all screws finger-tight.





3. Align fender with adjacent body panels and reference marks.
4. Tighten all screws to 8.5 Nm (75 in. lbs.).
5. Install rocker panel cover as necessary.

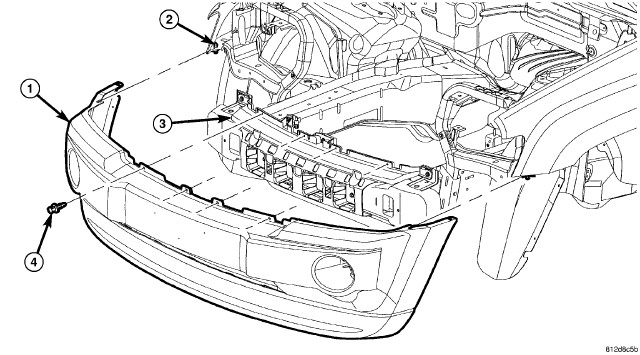

6. Install front fascia as necessary, Front Bumper Fascia - Installation.

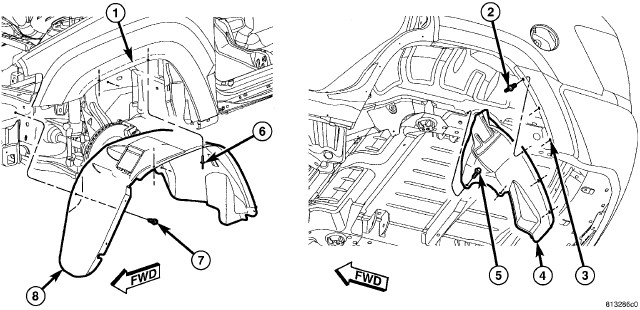

7. Install wheel liner.
8. Install wheel if removed.
