Keyless Ignition Node Receiver - Installation

INSTALLATION

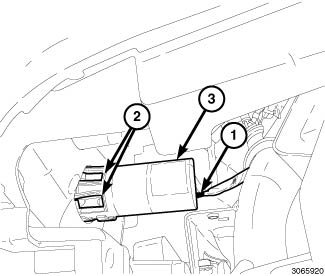

1. Push the Keyless Ignition Node (KIN) (3) into the instrument panel. Tab on KIN will line up with notch in the instrument panel, push in until the KIN clips securely into place.
2. Connect the wire connector (1)to the KIN module.

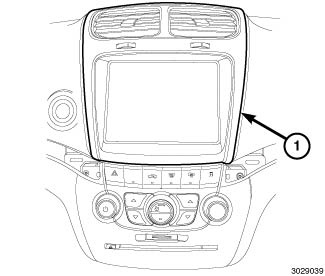

3. Install the instrument panel center bezel (1) Instrument Panel Center Bezel - Installation.





4. Install the switch bank assembly Instrument Cluster Switch Pod - Installation.
5. Connect the negative battery cable.
