Telematics Gateway Module - Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the switch-bank and bezel assembly (1) Instrument Cluster Switch Pod - Removal.

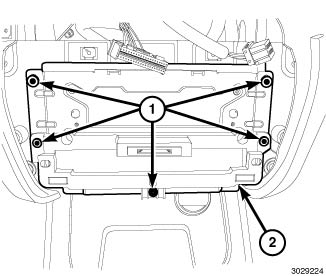

3. Remove the retainers (1) from the Telematics Gateway Module (TGM) (2) and pull out far enough to access the connectors on the back of the TGM.






CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

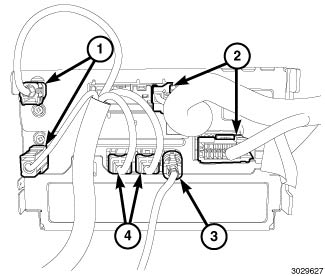

4. Disconnect the antenna(s) (1), Hands Free Module (HFM) and UCI cables (4), video cable (3) and wiring connectors (2) from the TGM.
5. Remove the TGM from the vehicle.
