Knock Sensor - Removal

2.4L

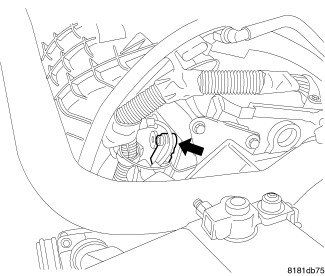

The knock sensor bolts into the side of the cylinder block in front of the starter under the intake manifold.

1. Disconnect and isolate negative battery cable.





2. Disconnect electrical connector (3) from knock sensor (2).
3. Remove bolt (1) and knock sensor (2) from engine block.
