Front

FRONT

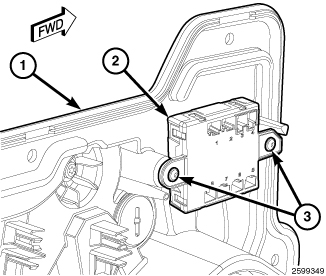

1. Position the front door control module (2) to the front door hardware module carrier (1).
2. Install and tighten the two screws (3) that secure the front door control module to the carrier. Tighten the screws securely.
3. Reconnect the electrical connectors to each of the front door control module connector receptacles.
4. Reinstall the trim panel onto the inside of the front door. Front Door Trim Panel - Installation.
5. Reconnect the battery negative cable.
