Power Sliding Door Module - Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the power sliding door drive assembly, Power Sliding Door Drive Assembly - Removal.

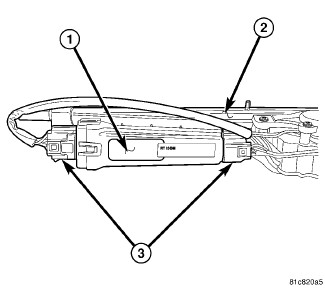

3. With the power sliding door drive assembly (2) on a work bench, disconnect the power sliding door control module (1) electrical connectors (3).

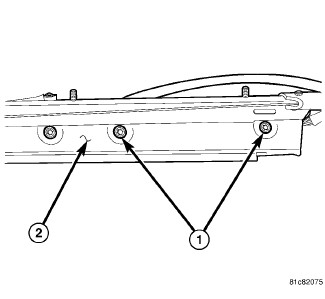

4. Remove the power sliding door control module retaining screws (1) and separate the module from the drive assembly (2).
