Power Window Switch - Installation

INSTALLATION

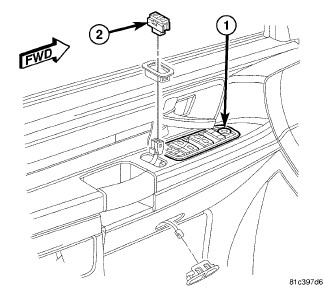

SWITCH-DRIVER DOOR





1. Connect the electrical connectors.

2. Firmly snap the switch assembly into the door trim panel.

3. Connect the battery negative cable.

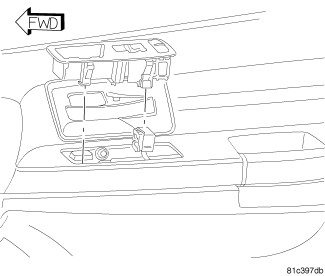

SWITCH-PASSENGER DOOR





1. Connect the electrical connectors and install the switch.

2. Firmly snap the switch assembly into the door trim panel.

3. Connect the battery negative cable.

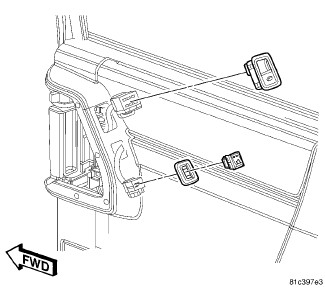

SWITCH-SLIDING DOORS





1. Connect the electrical connectors and install the switch.

2. Firmly snap the switch assembly into the inside door handle.

3. Connect the battery negative cable.
