Charging System (Service Information): Generator: Installation: 6.2L

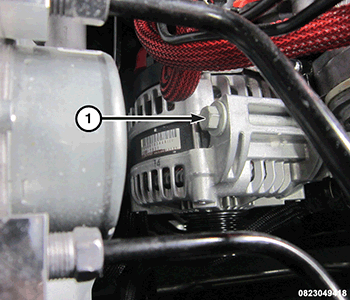

Position the generator and install the two upper generator retaining bolts finger tight.
Raise and support the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Position the generator B+ terminal eyelet to the generator output stud, install the retaining nut (3) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
Install the insulator cover (2) onto the B+ output terminal.
Snap the field wire connector (1) into the rear of the generator.

Courtesy of CHRYSLER GROUP, LLC

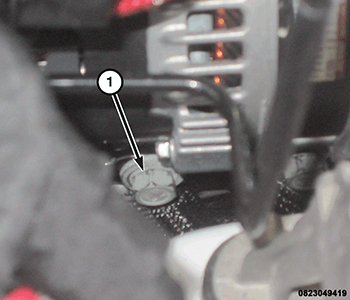

Tighten the lower retaining bolt to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC
Position the belly pan and install the belly pan retainers (1).
Lower the vehicle.

Courtesy of CHRYSLER GROUP, LLC
Install and tighten the generator upper retaining bolts to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
CAUTION:
When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat.

CAUTION:
Do not let the tensioner arm snap back to the freearm position, sever damage may occur to the tensioner.
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
Connect the negative battery cable and tighten the nut to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
