Firing Order

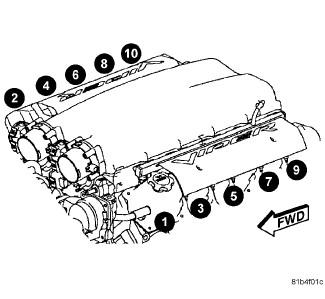

Fig 1: Identifying 8.4L Firing Order

Courtesy of CHRYSLER GROUP, LLC

The firing order is 1-10-9-4-3-6-5-8-7-2

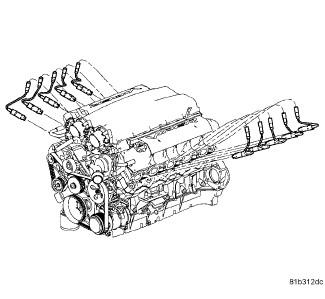

Fig 2: View Of Spark Plug Wires

Courtesy of CHRYSLER GROUP, LLC

Ignition cable routing.
