Cooler, Power Steering: Installation

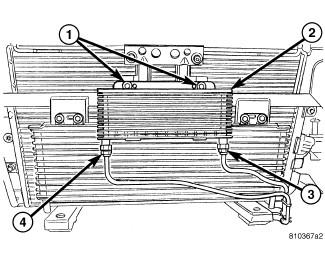

GC0135811Courtesy of CHRYSLER GROUP, LLC
  1. If necessary, thread quick connect tube nuts (3, 4) into fluid ports of cooler and tighten tube nuts to the proper specification. Refer to SPECIFICATIONS .
  2. Position cooler (2) and install screws (1) fastening cooler in place and tighten screws to the proper specification. Refer to SPECIFICATIONS .
  3. Remove any caps on hose tubes and wipe ends clean.
  4. Slide hose tubes into quick-connect tube nuts (3, 4) in cooler. Make sure tubes are locked into tube nuts.
  5. Lower vehicle.
  6. Connect negative (-) cable to battery.
  7. Fill and bleed power steering system. Refer to STANDARD PROCEDURE .
  8. Check for leaks.
