Sensor, Coolant Temperature: Description
 Courtesy of CHRYSLER GROUP, LLC
|

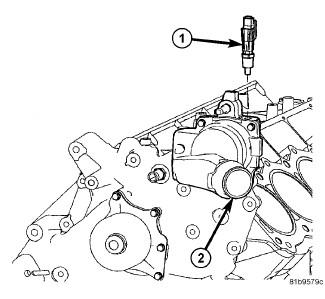

| 1 - COOLANT TEMPERATURE SENSOR |
| 2 - THERMOSTAT HOUSING |
The engine coolant temperature sensor threads into the timing chain cover at the left front side of the engine.
