Steering Column Control Module

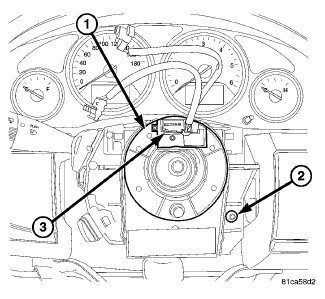

GC0125454Courtesy of CHRYSLER GROUP, LLC
  1. Remove the lower mounting screw (2).

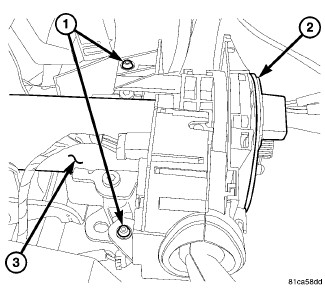

    GC0125455Courtesy of CHRYSLER GROUP, LLC
  2. Remove the two upper mounting screws (1) attaching the SCCM to the steering column.
  3. Slide the Steering Column Control Module (SCCM) (2) off the steering column (3).
