Fan, Cooling: Description

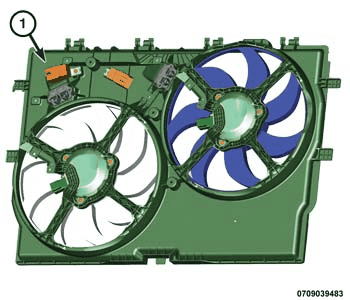

GC0162140Courtesy of CHRYSLER GROUP, LLC

The electric radiator fan (1) is mounted to the back side of the radiator. The radiator fan assembly consists of the fan shroud, two electric motors, two resistors, and two sets of fan blades as an assembly.
