Removal And Installation: Installation

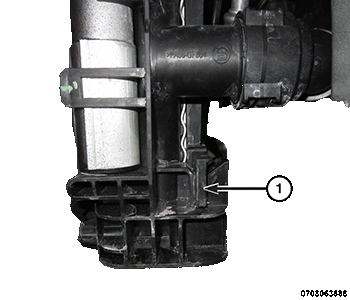

GC0171080Courtesy of CHRYSLER GROUP, LLC
NOTE:

Left side shown in illustration, right side similar.

  1. Place the lower radiator fan shroud tabs (1) into the radiator mounts.

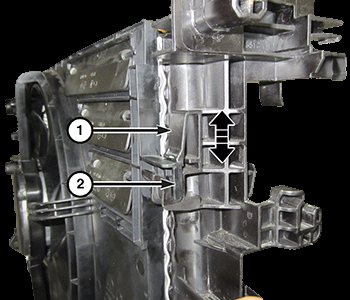

    GC0172047Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown in illustration, left side similar.

  2. Place the upper radiator fan shroud tabs (2) into the radiator mounts and engage the retainers (1).

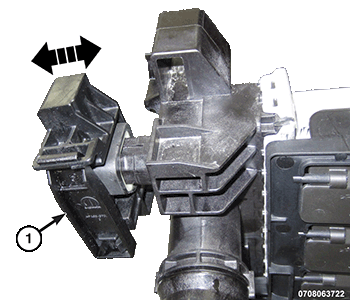

    GC0171468Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown in illustration, right side similar.

  3. Install the upper radiator mounting brackets (1) to the radiator.

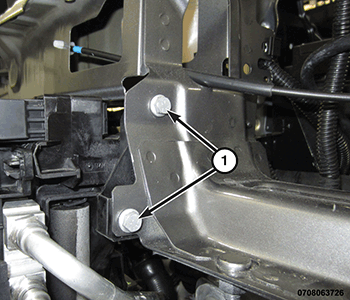

    GC0171176Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown in illustration, right side similar. Headlight removed for clarity.

  4. Position the radiator/cooling fan assembly in the vehicle and secure the upper radiator mounting brackets with the bolts (1) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

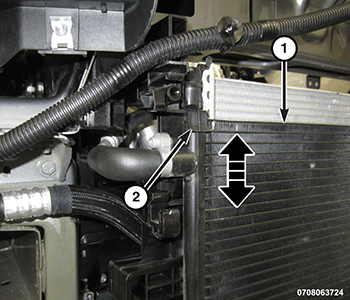

    GC0171464Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown in illustration, left side similar.

  5. Place the top of the A/C condenser (1) on the radiator mount tabs (2).

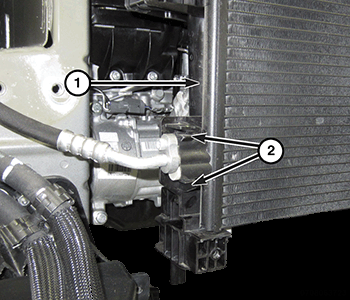

    GC0171517Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown in illustration, left side similar.

  6. Engage the A/C condenser (1) into the radiator lock tabs (2).

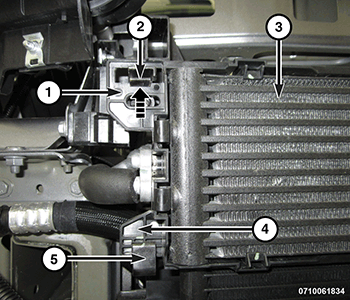

    GC0171772Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown in illustration, left side similar.

  7. Place the transmission oil cooler mount tabs (4) in the radiator mounts (5) and gently push the upper mounting tabs (1) into the retainers (2).

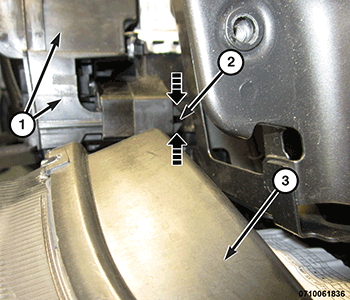

    GC0172062Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown in illustration, right side similar.

  8. Align the radiator shroud (1), engage the upper retention clips (2) and snap into place.

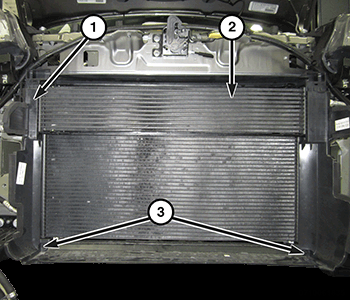

    GC0171502Courtesy of CHRYSLER GROUP, LLC
  9. Install the two screws (3) at the bottom of the radiator shroud (1).

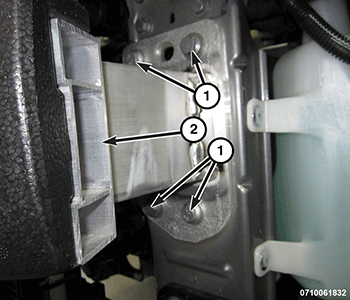

    GC0171346Courtesy of CHRYSLER GROUP, LLC
  10. Position the front bumper reinforcement (2) into position and install the left side bolts (1) finger tight.

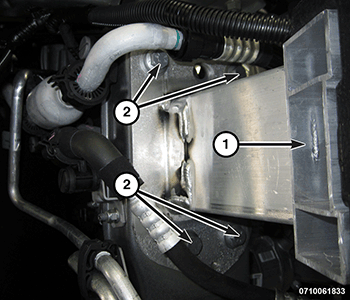

    GC0171527Courtesy of CHRYSLER GROUP, LLC
  11. Install the right side bolts (2) to the front bumper reinforcement (1) and tighten all front bumper reinforcement bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

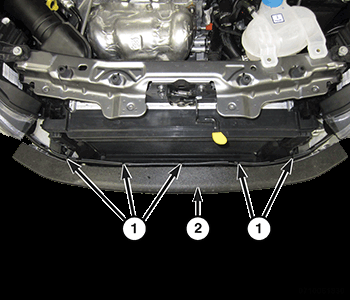

    GC0171090Courtesy of CHRYSLER GROUP, LLC
  12. Attach the wire harness retainers (1) to the front bumper reinforcement (2).

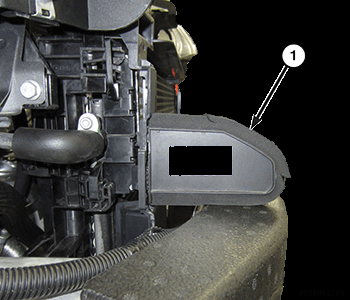

    GC0171941Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Right side shown in illustration, left side similar.

  13. Install the air seals (1), if removed.

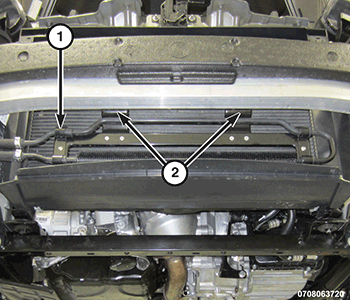

    GC0171217Courtesy of CHRYSLER GROUP, LLC
  14. Install the power steering fluid cooler (1) to the front bumper reinforcement with two bolts (2) tightened to the proper torque specification. Refer to SPECIFICATIONS .
  15. Remove the support and lower the vehicle.

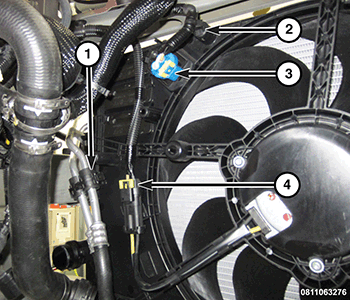

    GC0171732Courtesy of CHRYSLER GROUP, LLC
  16. Engage the transmission oil cooler line retainer (1) to the radiator fan shroud.
  17. Connect and lock the radiator cooling fan harness connector (4).
  18. Connect and lock the radiator cooling fan speed control module harness connector (3).
  19. Engage the wire harness retainer (2) to the fan shroud.

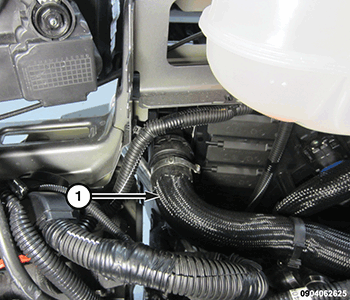

    GC0171675Courtesy of CHRYSLER GROUP, LLC
  20. Install the upper radiator inlet hose (1) to the radiator and engage the quick-connect coupling.

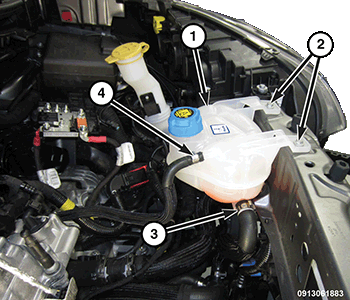

    GC0171597Courtesy of CHRYSLER GROUP, LLC
  21. Position the pressurized coolant bottle (1) onto the rubber grommet, install the two bolts (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

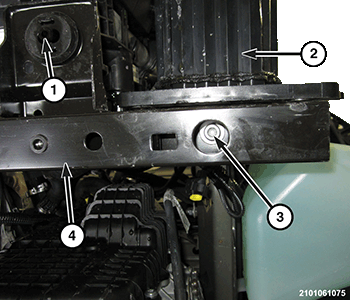

    GC0171187Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown in illustration, right side similar.

  22. Position the core support (4), while aligning the radiator to the bushings (1) and install the two lower bolts (3) hand tight.

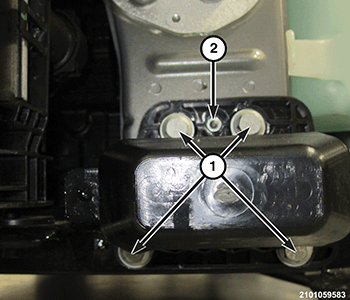

    GC0171854Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left side shown in illustration, right side similar.

  23. Install the bolts (1) to hold the front of the right and left load beams to the radiator support panel and tighten the bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
  24. Tighten the two previously installed lower radiator core support bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

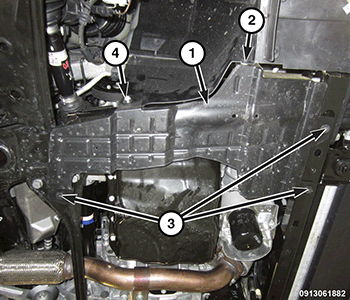

    GC0171975Courtesy of CHRYSLER GROUP, LLC
  25. Install the right lower splash shield (1) with four bolts (3 and 4) and screw (2) tightened to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

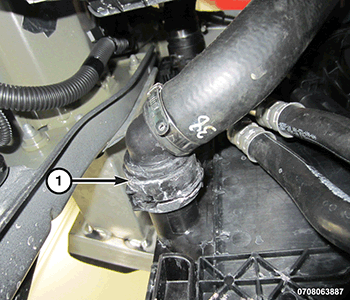

    GC0172014Courtesy of CHRYSLER GROUP, LLC
  26. Install the lower radiator hose (1) and fill the cooling system. Refer to FILLING THE COOLING SYSTEM  .
  27. Install the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .
  28. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  29. Run the engine until it reaches normal operating temperature. Check cooling system for correct fluid level. Refer to STANDARD PROCEDURE .
