Caster & Camber

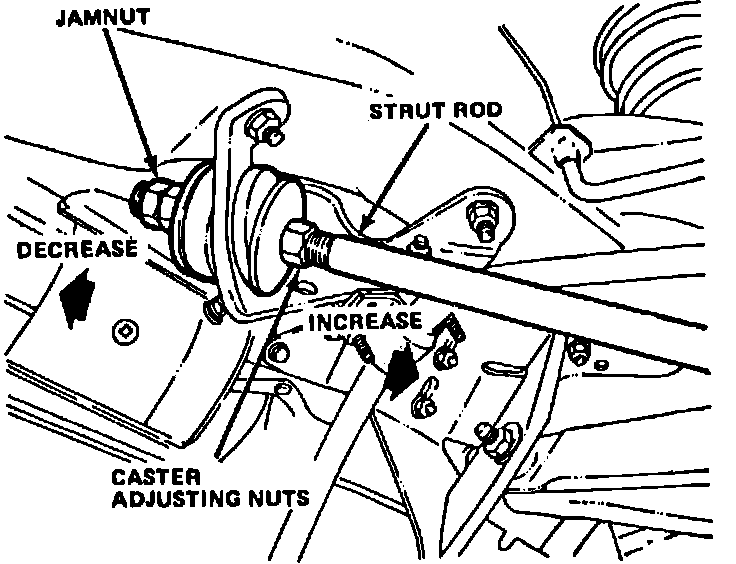

Fig. 1 Caster adjustment:

CASTER
Caster is obtained by moving the two adjusting nuts on the threaded strut rod. One nut is on each side of the mounting bracket. Therefore, moving the nuts on the rod will move the lower control arm to front or rear for desired caster angle. After adjustment, torque adjusting nuts to 65 ft. lbs.. Torque locknuts to 75 ft. lbs.

Fig. 2 Camber adjustment:

CAMBER
Camber is obtained by turning on the eccentric lower control arm bolt. After adjustment, torque locknut to 110 ft. lbs.
