Torque Specifications

Front and Rear Differential Torque Specification

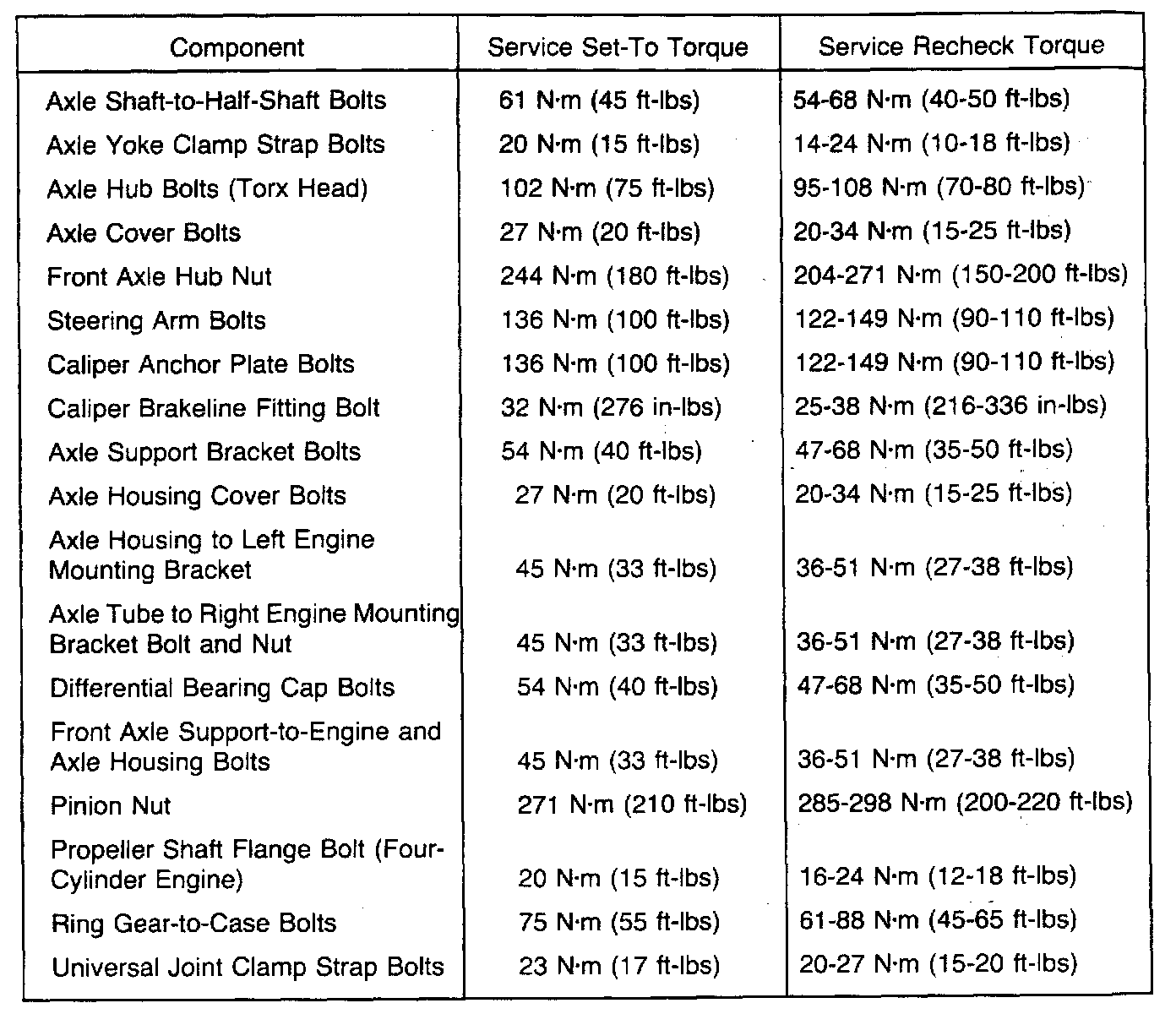

Front Differential

Torque Specifications, Front:

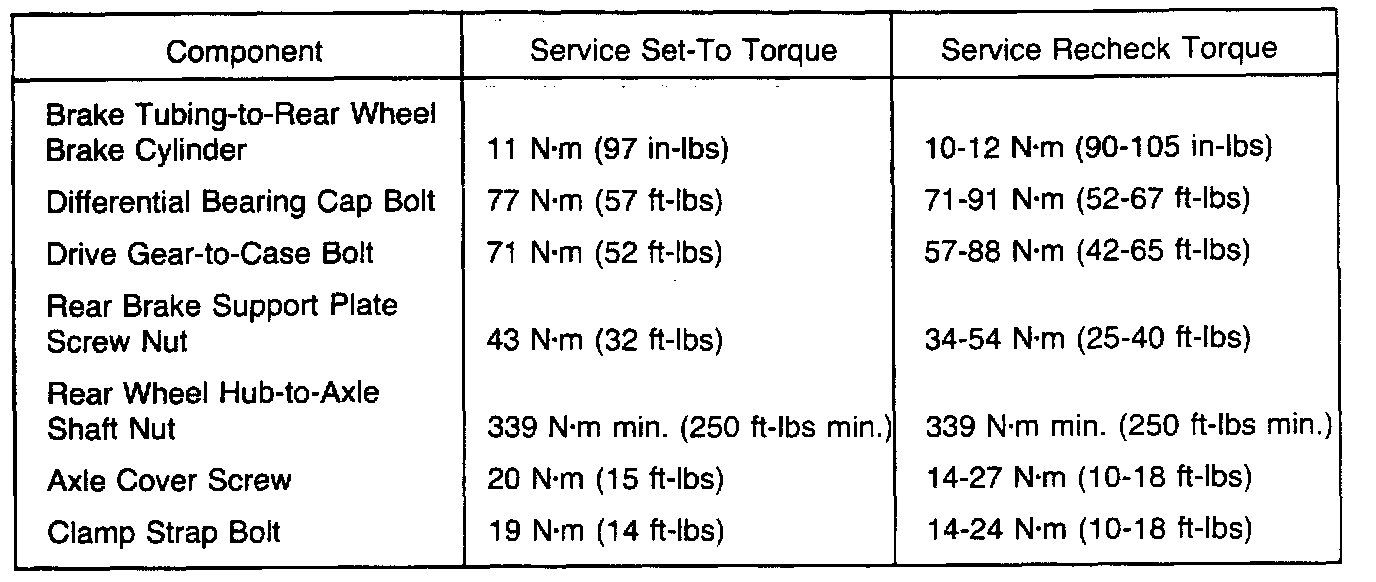

Rear Differential

Torque Specifications, Rear:
