Main Relay (Computer/Fuel System): Service and Repair

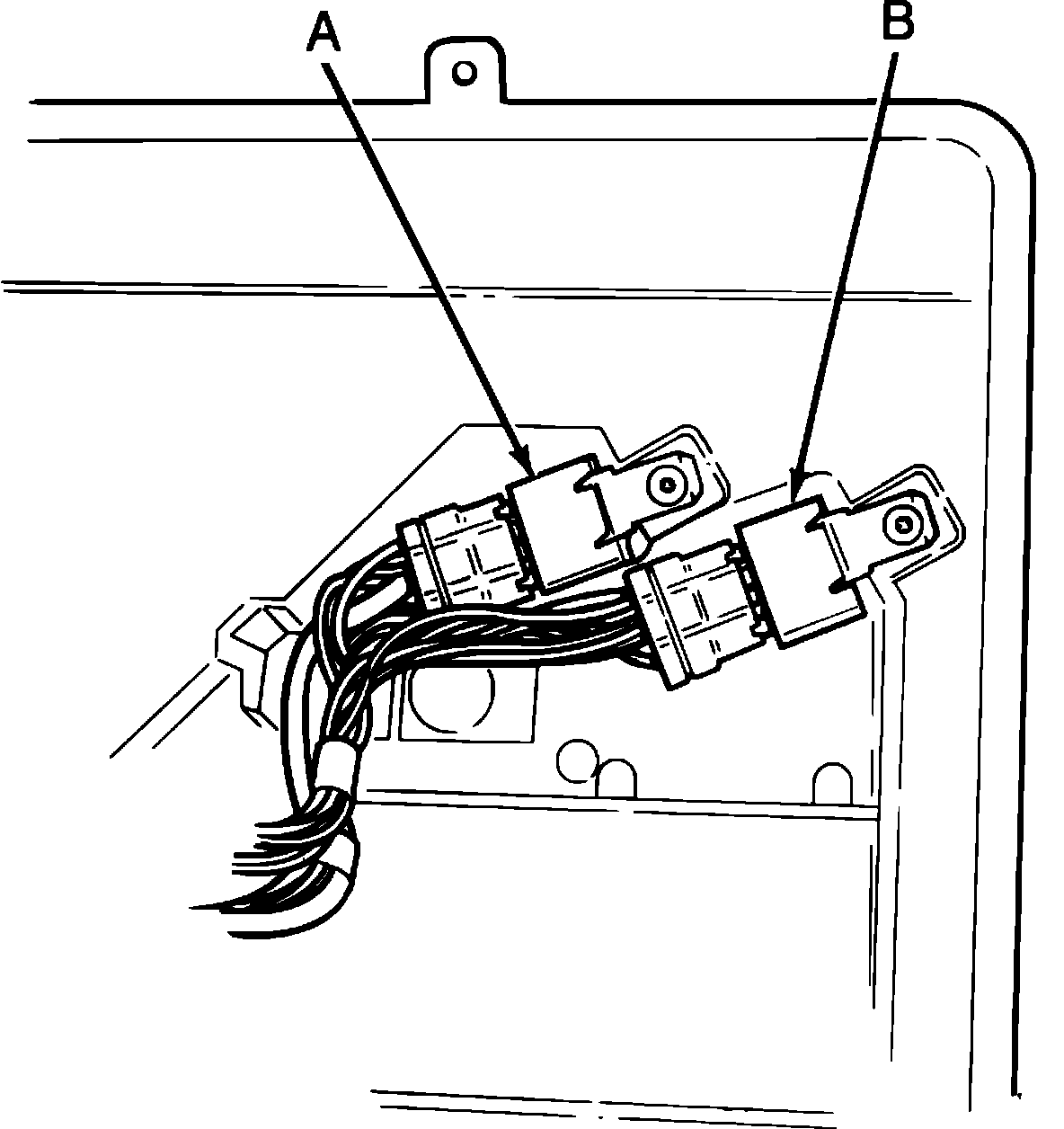

Fig. 13 B+ (A) & Fuel Pump Relay (B) Location:

These relays are contained within the splash-proof ECU housing mentioned above.
1. Remove wing nut, then the splash-proof housing.
2. Pull back on retaining clip, then open inner housing door.
3. Disconnect electrical connector from B+ (A) or fuel pump relay (B), Fig. 13, then remove relay attaching screws and the relay(s).
4. Reverse procedure to install.
