Ignition Control Module: Service and Repair

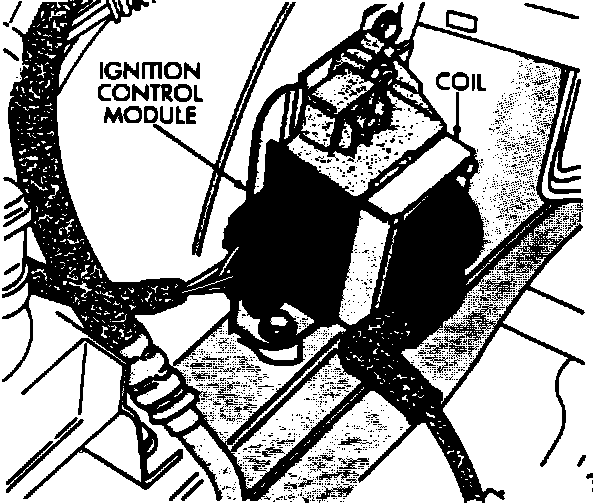

Ignition Control Module:

REMOVAL

1. Disconnect Ignition Control Module (ICM) wiring connector.
2. Disconnect high tension wire.
3. Remove mounting bolts.
4. Remove ICM.



INSTALLATION

1. Mount ICM in position and install mounting bolts.
2. Install wiring connector.
3. Install high tension lead.
